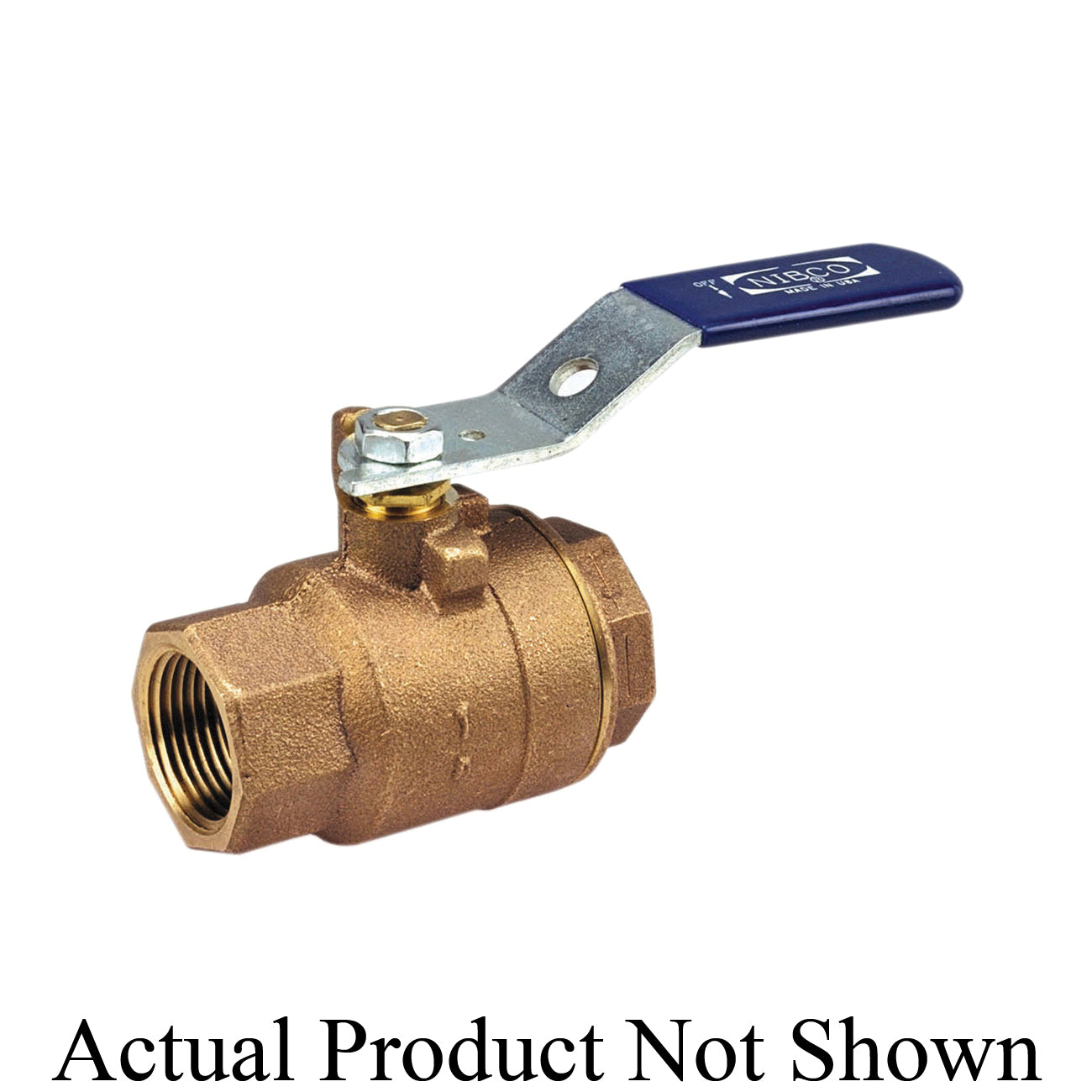

NIBCO NL95006 T-585-70 2-Piece Ball Valve 1/2 in Nominal FNPT Cast Red Bronze Body Full Port

Product Description

The NIBCO NL95006 is a 2-piece bronze ball valve designed for easy operation. It features a quarter-turn mechanism for open and close functions. The valve has thread ends for simple installation. Its applications include commercial and industrial use in mechanical, HVAC, and processing environments. The valve is rated for high pressure and temperature, ensuring reliable performance in various conditions.

• Pressure rating of six hundred psi
• Suitable for air, gas, and water media
• Domestic production with a five-year limited warranty

Product Highlights

This ball valve is designed for high efficiency in demanding applications, ensuring a secure seal at high pressures.

Product Information

Standard Information

• Manufacturer: NIBCO
• MPN: NL95006

Technical Specifications

• Type: 2-Piece
• Media: Air/Gas/Water
• End Style: FNPT
• Nominal Size: 1/2 in
• Orifice Size: 1/2 in
• Pressure Rating: 600 psi
• Temperature Rating: 400 deg F
• Inlet to Outlet Length: 2.44 in
• Top to Inlet Center: 1.88 in
• Body Material: Cast Red Bronze
• Ball Material: Polished Chrome Brass
• Trim Material: Silicon Bronze Stem
• Softgoods Material: PTFE
