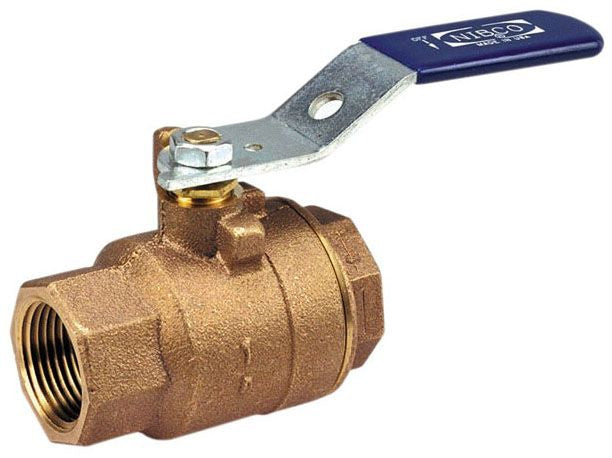

Nibco NL95005 T-585-70 2-Piece Ball Valve 600 PSI (3/8 Inch FNPT) NL95005

Product Description

The Nibco NL95005 is a 2-piece ball valve designed for high-pressure systems. This valve features a quarter-turn lever handle for ease of operation. It is equipped with female threaded connections on both ends, making it suitable for various applications.

• Quarter-turn operation for quick shutoff
• Pressure rating of 600 PSI for non-shock cold working pressure
• Compliant with MSS SP-110 standards for reliability

Product Highlights

This ball valve is suitable for use in HVAC systems, hot and cold domestic water applications, low-pressure steam, and compressed air systems.

Product Information

Standard Information

• Brand: Nibco
• Manufacturer Part Number: NL95005

Technical Specifications

• Actuation Type: 1/4 Turn, Lever Handle
• Pressure Rating: 600 PSI Non-Shock CWP, 150 PSI SWP
• Nominal Size: 3/8 Inch x 3/8 Inch
• End Connection: Female Threaded x Female Threaded
• Body Material: Cast Red Bronze Alloy
• Ball Material: Hard Chrome Plated Brass Alloy
• Seal Material: PTFE Packing
• Seat Material: Reinforced PTFE
• Application: HVAC, Hot and Cold Domestic Water, Low Pressure Steam, Compressed Air, LP Gas, and Natural Gas
