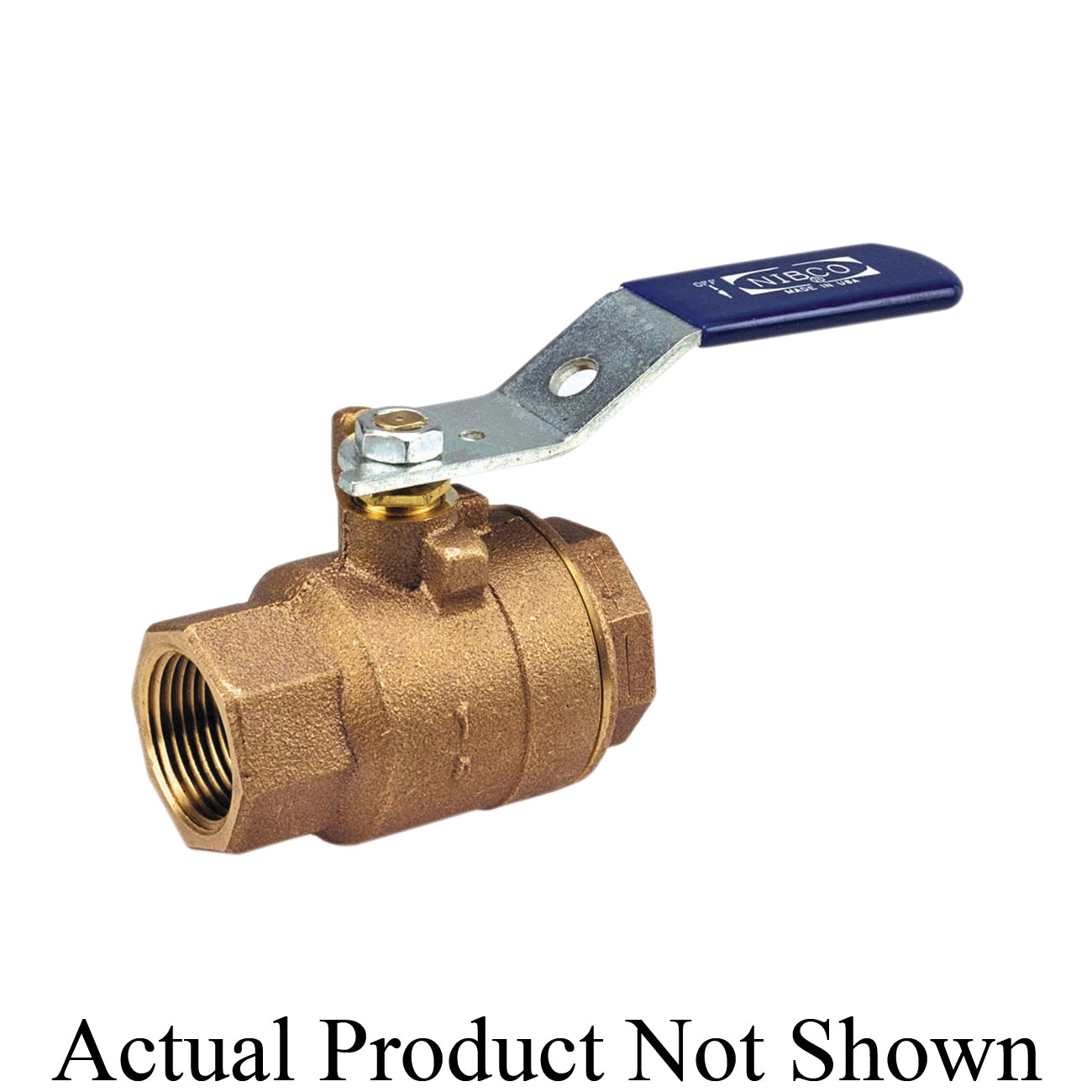

NIBCO NL95004 T-585-70 2-Piece Ball Valve 1/4 in Nominal FNPT End Style Cast Red Bronze Body Full Port PTFE Softgoods

Product Description

The NIBCO NL95004 is a two-piece ball valve designed for easy operation with a quarter-turn mechanism. This valve features thread ends for straightforward installation. It is suitable for various applications including HVAC systems, domestic water, and low-pressure steam systems. The valve is crafted from cast red bronze body, ensuring durability in demanding environments. NIBCO ball valves are well-known for their versatility and cost-effectiveness in commercial and industrial use.

• Certified for 600 psi working pressure.
• Full port design, suitable for air, gas, and water media.
• Standard lever handle for user-friendly operation.

Product Highlights

This valve is ideal for high pressure and temperature applications, ensuring reliability and efficiency.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• MPN: NL95004

Technical Specifications

• Type: 2-Piece
• Media: Air/Gas/Water
• Series: T-585-70
• End Style: FNPT
• Port Type: Full
• Nominal Size: 1/4 in
• Orifice Size: 0.38 in
• Pressure Rating: 600 psi
• Temperature Rating: 400 deg F
• Inlet to Outlet Length: 2 in
• Top to Inlet Center: 1-3/4 in
• Ball Material: Polished Chrome Brass
• Body Material: Cast Red Bronze
• Softgood Material: PTFE
• Trim Material: Silicon Bronze Stem
