Nibco NL94Q76 Ball Valve 1/2 Inch Fnpt 2000 Psi Stainless

Product Description

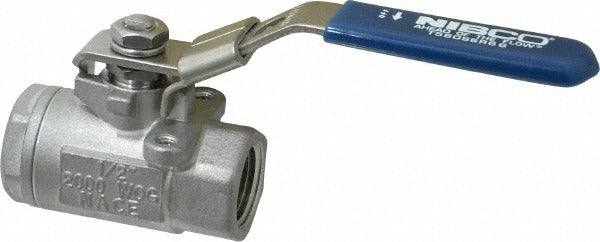

The NIBCO NL94Q76 is a 2-piece, standard-port manual ball valve rated for up to 2000 psi working pressure and a maximum working temperature of 400 degrees F. The body and trim are both stainless steel, making this valve well suited for corrosive media, high-pressure service lines, and applications where longevity under thermal stress is a priority. Seats and seals are reinforced PTFE, providing chemical resistance and a reliable shutoff across a wide range of fluids. End connections are FNPT x FNPT on a 1/2-inch pipe size. The locking lever handle prevents accidental actuation in critical service points.

This valve is used in commercial and industrial plumbing, HVAC hydronic systems, compressed air lines, chemical feed systems, and similar piping applications where a compact inline shutoff is required. The 1/2-inch FNPT x FNPT configuration threads directly into standard female-ported fittings or equipment ports without adapters. Licensed plumbers, pipefitters, and mechanical contractors typically install this valve during new construction, system retrofits, or as a replacement shutoff in existing piping runs.

Key Features

• 2000 psi maximum working pressure for high-pressure service
• Stainless steel body and trim for corrosion resistance
• Reinforced PTFE seats and seals for chemical compatibility and reliable shutoff
• Locking lever handle prevents unintended valve position changes
• FNPT x FNPT end connections for direct thread installation on 1/2-inch pipe
• 2-piece body construction allows in-line maintenance access

Compatibility

Designed as a standard-port, 2-piece stainless steel ball valve for 1/2-inch female NPT piping systems. Suitable as an inline shutoff or isolation valve wherever FNPT connections and high working pressure ratings are required.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable IPC and local mechanical codes. Depressurize and drain the piping system completely before removing any existing valve or fitting. Apply thread sealant or PTFE tape to male NPT threads per standard trade practice. Verify flow direction and handle orientation before returning the system to service.
