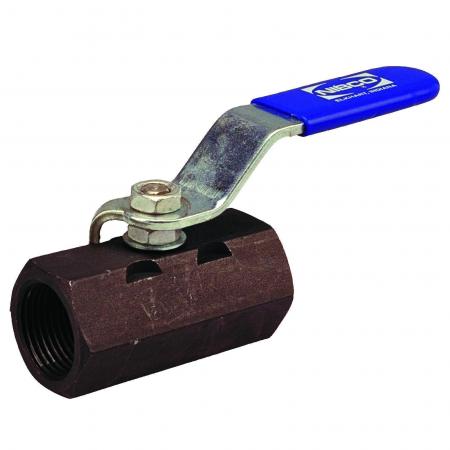

NIBCO NL94GJD T570CSR66 2 Threaded Ball Lever Handle Carbon Steel

Product Description

The NIBCO NL94GJD Ball Valve is a one-piece, threaded ball valve designed for process piping, utility service, and some chemical applications. It is constructed from carbon steel and features a 316 stainless steel trim.

• Pressure rating: 1500 psi
• Temperature rating: 400 degrees Fahrenheit
• Reduced port design

Product Highlights

This ball valve features a blowout-proof stem and a vented stainless steel ball and stem. It has a standard lever handle actuator and a PTFE softgoods material. The valve is rated for non-shock cold working pressure.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NL94GJD

Technical Specifications

• Series: T-570-CS-R-66
• Nominal Size: 2 inches
• End Style: FNPT
• Pressure Rating: 1500 psi
• Temperature Rating: 400 degrees Fahrenheit
• Orifice Size: 1-1/4 inches
• Body Material: Carbon Steel
• Ball Material: Stainless Steel
• Actuator Type: Locking Lever Handle
• Trim Material: 316 Stainless Steel Stem
• Port Type: Reduced
• Softgoods Material: PTFE
• Inlet to Outlet Length: 4-1/2 inches
• Top to Inlet Center: 3 inches
• Manufacturer: NIBCO INC
• Type: 1-Piece
• Domestic/Import: Import
