NIBCO INC NL94GJ8 T570CSR66 3/4 THRD BALL LEV HNDL CS

Product Description

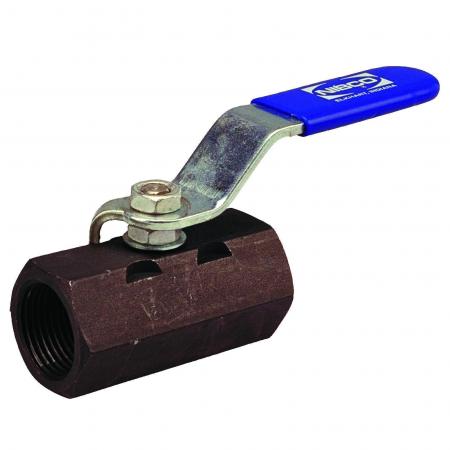

NIBCO INC NL94GJ8 is a ball valve designed for various piping applications. This product features a nominal size of three-fourths inches and a female national pipe thread connection. It is built for high pressure handling with a rating of two thousand psi and a temperature tolerance of four hundred degrees Fahrenheit.

• Constructed with a carbon steel body and stainless steel trim
• Features a blowout-proof stem to enhance safety
• Standard lever handle actuator for easy operation

Product Highlights

This ball valve provides reliable service for water flow control in process piping and utility applications.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Type: 1-Piece

Technical Specifications

• Actuator Type: Locking Lever Handle
• Media: Water
• Nominal Size: 3/4 in
• Pressure Rating: 2000 psi
• Temperature Rating: 400 deg F
• Inlet to Outlet Length: 2.63 in
• Orifice Size: 0.47 in
• Ball Material: Stainless Steel
• Body Material: Carbon Steel
• Softgoods Material: PTFE
• Trim Material: 316 Stainless Steel
• End Style: FNPT
• Port Type: Reduced
• Series: T-570-CS-R-66
• Top to Inlet Center: 1-3/4 in
• Domestic/Import: Import
