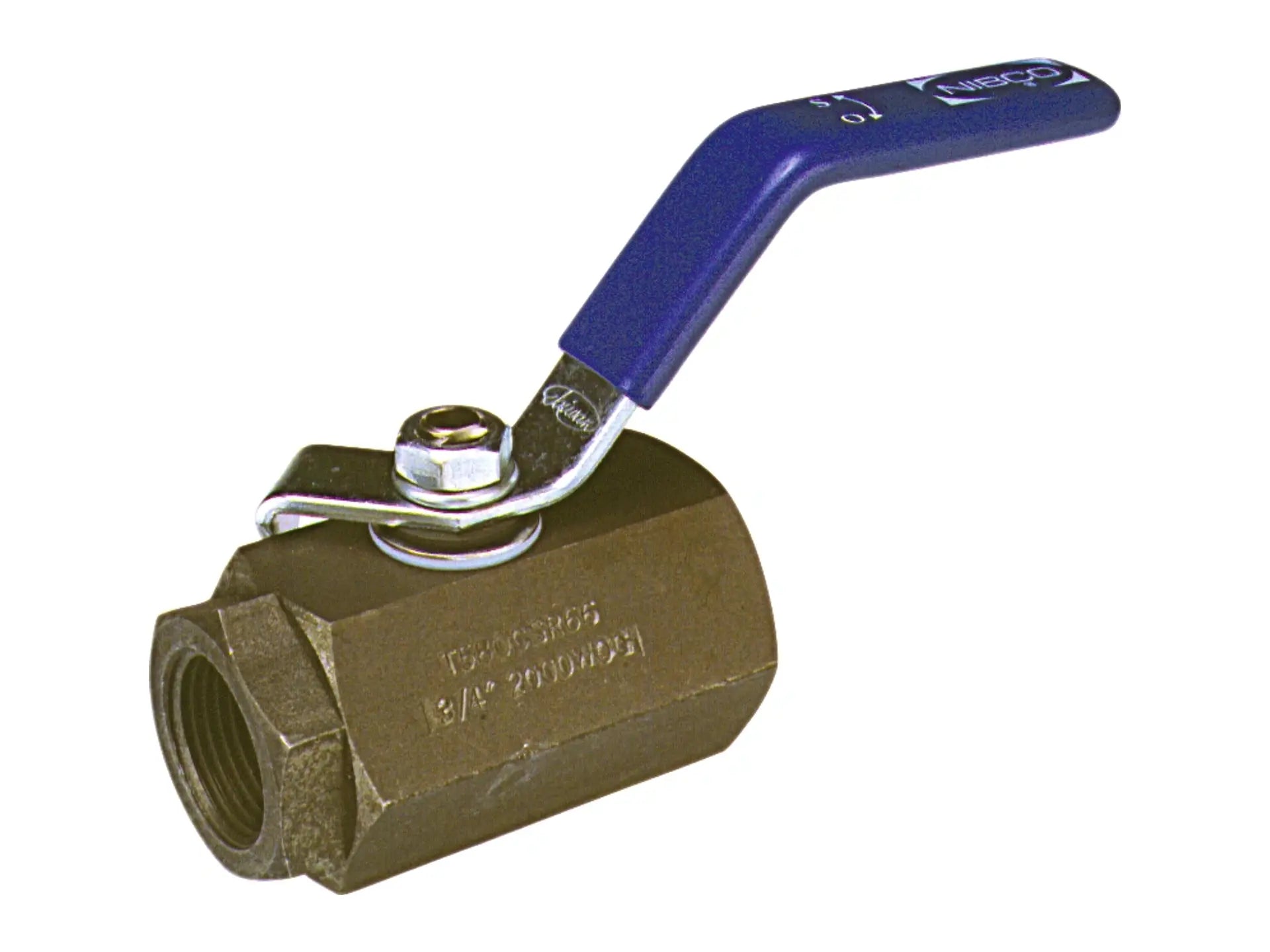

Nibco NL94GIC T-580-CS-R-66 Two-Piece Carbon Steel Ball Valve 1-1/2 inches

Product Description

The NIBCO NL94GIC carbon steel ball valve provides ease of operation with quarter-turn (90 degrees) open to close. It provides bubble-tight shutoff at 2000 psi (size 1/4" to 1") and 1500 psi (size 1-1/4" to 2"). The two-piece valve may be used on hot/cold water and HVAC. This valve features threaded ends for easy installation.

• Valve pressure rating 2000 psi 138 bar non-shock cold working pressure (1/4" to 1")
• Valve pressure rating 1500 psi 103 bar non-shock cold working pressure (1-1/4" to 2")
• Maximum temperature rating 400°F
• Quarter-turn

Product Highlights

The NIBCO carbon steel ball valve is versatile and economical for commercial and industrial applications. It features a reinforced PTFE seat ring and stainless steel ball/stem.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL94GIC
• Country of Origin: TW

Technical Specifications

• UPC Code: 039923675088
• Type: Ball Valve
• Valve Size: 1 1/2
• Connection Type: T -- Female NPT Thread (FIPT)
• Seal Material: RPTFE (Reinforced)
• Seat Material: RPTFE (Reinforced)
• Stem Material: SS - Stainless Steel
• Ball Material: SS - Stainless Steel
• Body Material: Carbon Steel
• Valve Operator: CS Standard Lever Handle
• Description: T580CSR66 1 1/2 THRD BALL 2PC SS TRIM CS
• eClass Classification: Carbon Steel Ball Valves
• Turns/Operation: Quarter-Turn
• Manufacturer: NIBCO
• Part Number: NL94GIC
• Model: T-580-CSR-66
• Series: T-580-CS-R-66
• Type of Valve: Ball
• Nominal Pipe Size: 1-1/2"
• Ball Body Type: Two-Piece
• Ball Operator: CS Standard Lever Handle
• Ball Port Style: Conventional Port
• Trim Package: Stainless Steel Trim
• Pressure Rating (CWP): 1500 psi/103 Bar CWP
• Potable Water Code: Not LL Comp not intend potable
• Length: 9.07"
• Width: 4.57"
• Height: 3.05"
• Port Type: Conventional
• Blowout-proof stem: Yes
• Ball and Stem Material: Stainless steel
• Vented ball: Yes
• Handle: Standard lever handle
• End Connections: Threaded
• Conforms to: MSS SP-110
• Item Name: Ball Valve
• Nominal Size: 1-1/2 IN
• Pressure Rating: 1500 PSI (CWP) Non-Shock
• Temperature Rating: 400 DEG F
• Operator Type: Standard Lever Handle
• Handle Material: Carbon Steel
• Trim Material: Stainless Steel
• Material Standard: Ball: ASTM A276/ASTM A351, Belleville Washer: ASTM A686, Body: ASTM A108 Type 1018, Body End: ASTM A108 Type 1018, Gland Washer: ASTM A240 Type 304, Handle: ASTM A283, Handle Nut: ASTM A283, Stem: ASTM A276
• Material Specification: Ball: UNS CF8M
• Industry Standards: MSS SP-110
• Other Physical Dimension: 3-1/4 IN Inlet Center To Top Of Handle, 7 IN Handle Length
• Additional Specifications: Ball Material: Stainless Steel
• Brand: NIBCO
• Port: Conventional
