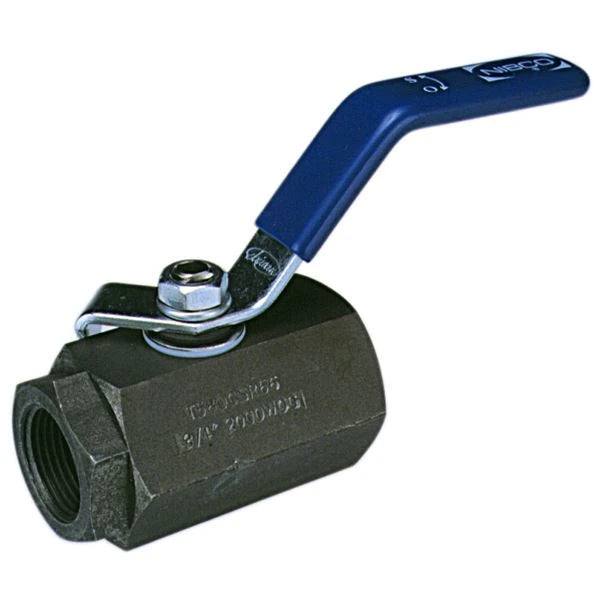

Nibco NL94GIA T-580-CS-R-66 Two-Piece Carbon Steel Ball Valve 1 inches Replacement NL94GIA

Product Description

The NIBCO NL94GIA carbon steel ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The reinforced PTFE seat ring and stainless steel ball/stem exhibit high chemical resistance properties and is recommended for process piping. This valve features threaded ends for easy installation. It may be used for isolation and throttling.

• Blowout-proof stem
• VB - Vented ball
• PTFE seat ring/stem packing

Product Highlights

The NIBCO ball valve is a versatile and economical valve option for commercial and industrial applications. It features a carbon steel body, stainless steel trim, and a standard lever handle.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL94GIA
• Country of Origin: TW

Technical Specifications

• UPC Code: 039923675064
• Type: Ball Valve
• Valve Size: 1 in
• Connection Type: T -- Female NPT Thread (FIPT)
• Seal Material: RPTFE (Reinforced)
• Seat Material: RPTFE (Reinforced)
• Stem Material: SS - Stainless Steel
• Ball Material: Stainless Steel
• Body Material: Carbon Steel
• Valve Operator: CS Standard Lever Handle
• Description: T580CSR66 1 THRD BALL 2PC SS TRIM CS
• Turns/Operation: Quarter-Turn
• End Style: FNPT
• Nominal Size: 1 in
• Port Type: Conventional
• Softgoods Material: PTFE
• Inlet to Outlet Length: 3.35
• Manufacturer: NIBCO Inc.
• Manufacturer #: NL94GIA
• Media: Water/Chemical
• Orifice Size: 0.89
• Pressure Rating: 2000 psi
• Series: T-580-CS-R-66
• Temperature Rating: 400 deg F
• Top to Inlet Center: 2.83
• Trim Material: Stainless Steel Stem
