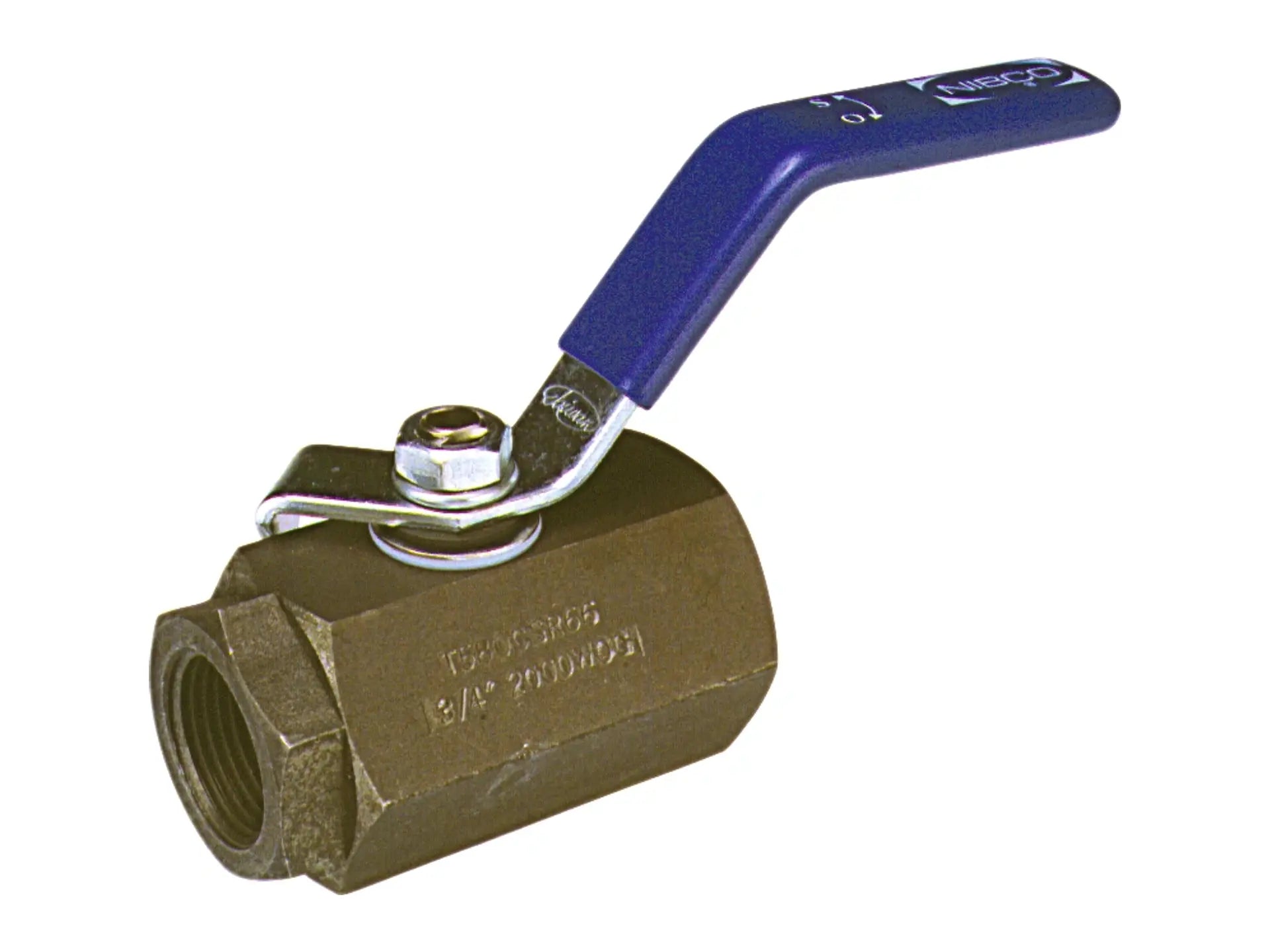

Nibco NL94GI8 T-580-CS-R-66 Ball Valve 3/4 in. Replacement NL94GI8

Product Description

The NIBCO NL94GI8 T-580-CS-R-66 carbon steel ball valve provides ease of operation with quarter-turn (90 degrees) open to close. Features threaded end connections and a blowout-proof stem. The stainless steel ball and stem offer high chemical resistance. Conforms to MSS SP-110.

• Threaded end connections
• Blowout-proof stem
• Carbon steel body, stainless steel trim

Product Highlights

The NIBCO carbon steel ball valve is versatile and economical for commercial and industrial applications. It features a reinforced PTFE seat ring and stainless steel ball/stem.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL94GI8
• Country of Origin: TW

Technical Specifications

• End Connections: Threaded
• Body Material: Carbon steel
• Trim: Stainless steel
• Port Type: Conventional
• Ball and Stem Material: Stainless steel
• Maximum Temperature Rating: 400 F
• Valve Pressure Rating: 2000 psi 138 bar non-shock cold working pressure (1/4 in. to 1 in.)
• Conforms To: MSS SP-110
• Type: Ball Valve
• Valve Size: 3/4"
• Connection Type: T -- Female NPT Thread (FIPT)
• Seal Material: RPTFE (Reinforced)
• Seat Material: RPTFE (Reinforced)
• Stem Material: SS - Stainless Steel
• Ball Material: SS - Stainless Steel
• Valve Operator: CS Standard Lever Handle
• Description: T580CSR66 3/4 THRD BALL 2PC SS TRIM CS
• Turns/Operation: Quarter-Turn
• Manufacturer: NIBCO
• Part Number: NL94GI8
• Model: T-580-CSR-66
• Series: T-580-CS-R-66
• Type of Valve: Ball
• Nominal Pipe Size: 3/4"
• Ball Body Type: Two-Piece
• Ball Operator: CS Standard Lever Handle
• Ball Port Style: Conventional Port
• Ball Stem Material: SS - Stainless Steel
• Trim Package: Stainless Steel Trim
• Seat Seal Material: RPTFE (Reinforced)
• Pressure Rating (CWP): 2000 psi/138 Bar CWP
