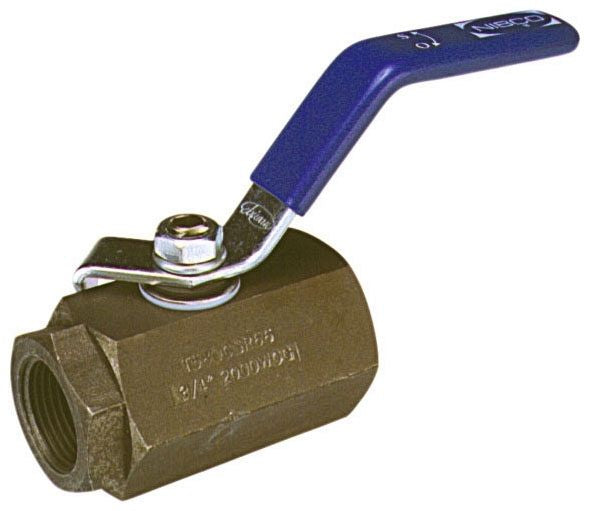

Nibco nl94gi6 Carbon Steel Ball Valve 0.5 in Threaded

Product Description

The NIBCO nl94gi6 is a two-piece, bar stock carbon steel standard port ball valve designed for industrial and commercial piping systems. It features a 316 stainless steel trim package and a vented ball, with a cold working pressure (CWP) rating of 2000 psi. The female pipe thread (FPT) end connections allow for straightforward installation into threaded piping runs. At 0.5 inches, this valve is suited for applications where reliable shutoff and pressure integrity are critical. Licensed plumbers and industrial pipe fitters are the primary installers for this type of valve.

This valve is appropriate for a range of commercial and industrial fluid control applications where carbon steel construction and high-pressure ratings are required. The FPT threaded connections make it compatible with standard NPT threaded pipe systems. The vented ball design helps relieve trapped pressure between the seats when the valve is in the closed position, a feature commonly required in certain gas and liquid service applications.

Key Features

• 2000 psi cold working pressure (CWP) rating for high-pressure service
• Two-piece bar stock carbon steel body for durability in demanding environments
• 316 stainless steel trim for corrosion resistance in the wetted components
• Vented ball design relieves trapped cavity pressure when valve is closed
• Standard port configuration with female pipe thread (FPT) end connections
• 0.5 inch size suitable for compact piping runs and tight spaces

Compatibility

Designed as an OEM-style replacement or direct-install ball valve for threaded NPT piping systems requiring a two-piece carbon steel standard port valve with 316 stainless steel trim.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipe fitter in accordance with applicable local codes and ASME B31.3 process piping guidelines. Depressurize and drain the line completely before removing or installing this valve. Use an appropriate thread sealant rated for the service media on all FPT connections. Do not exceed the rated 2000 psi CWP or apply excessive wrench force to the valve body during makeup.

Technical Specifications

• Material: Carbon Steel Body, 316 Stainless Steel Trim
• Size: 0.5 inches
• Pieces: 2
• Connection Type: Threaded FPT (Female Pipe Thread)
• Port: Standard Port
• Cold Working Pressure: 2000 psi
• Ball Type: Vented

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: nl94gi6
