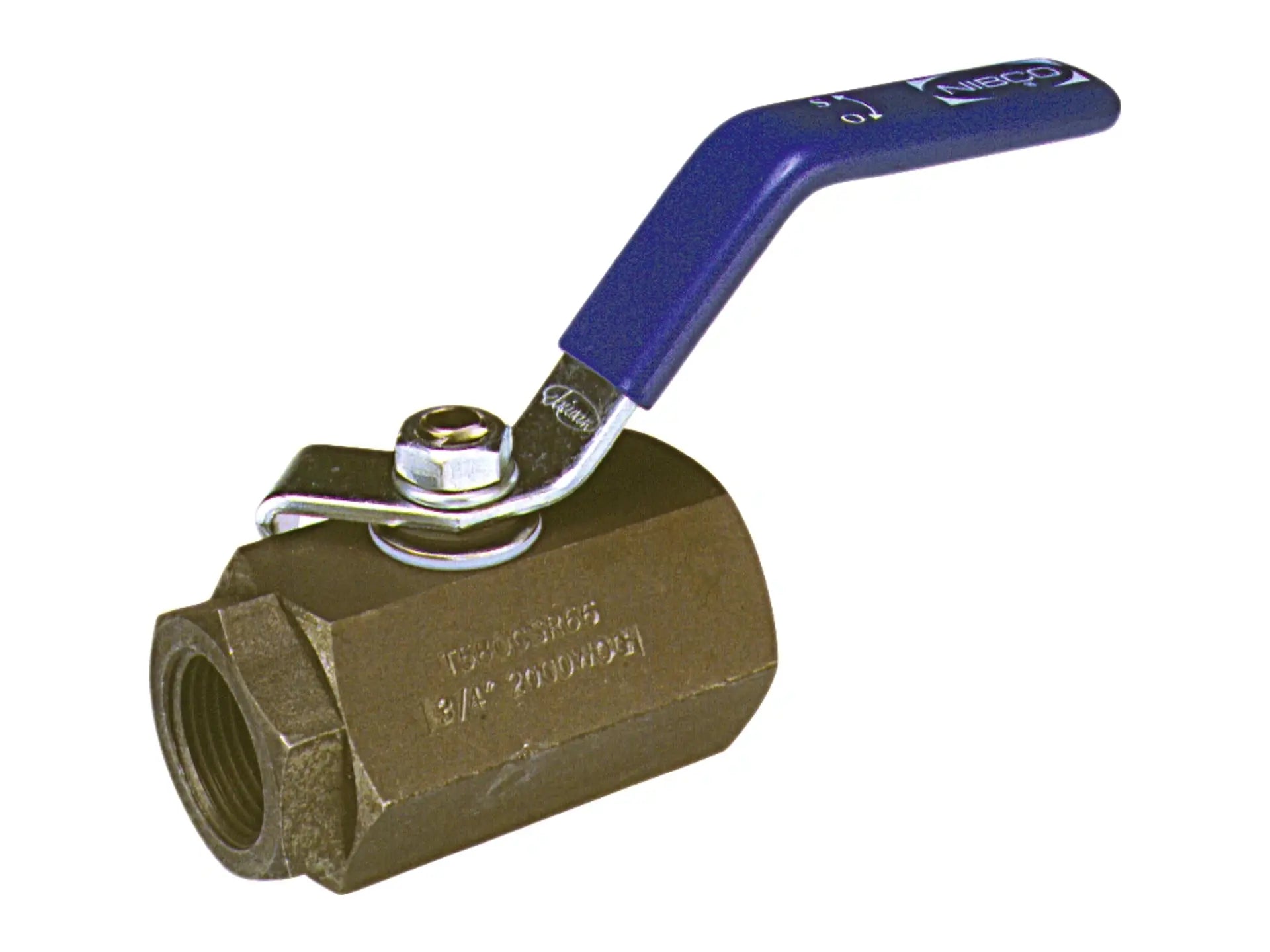

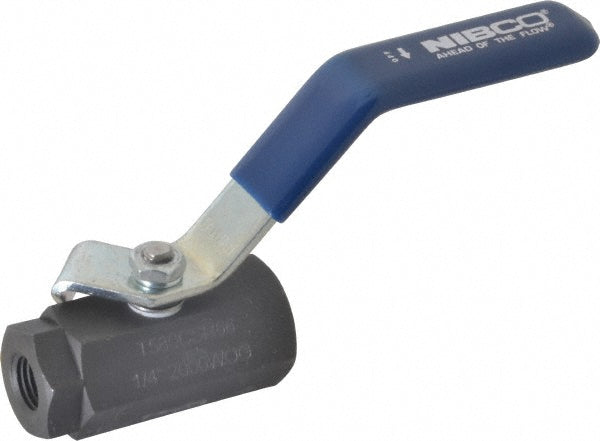

Nibco NL94GI4 T-580-CS-R-66 Two-Piece Carbon Steel Ball Valve 1/4 inches Stainless Steel Trim

Product Description

The NIBCO carbon steel ball valve, MPN NL94GI4, provides ease of operation with a quarter-turn (90 degrees) open to close. The reinforced PTFE seat ring and stainless steel ball/stem exhibit high chemical resistance properties and is recommended for process piping.

• Features a blowout-proof stem.
• Offers bubble-tight shut-off at 2000 psi (size 1/4 to 1 in) and 1500 psi (size 1-1/4 to 2 in).
• May be used on hot/cold water and HVAC.

Product Highlights

This 2-piece ball valve features threaded ends for easy installation and is suitable for isolation and throttling applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL94GI4
• Country of Origin: TW

Technical Specifications

• UPC Code: 039923675026
• Type: Ball Valve
• Valve Size: 1/4
• Connection Type: T -- Female NPT Thread (FIPT)
• Seal Material: RPTFE (Reinforced)
• Seat Material: RPTFE (Reinforced)
• Stem Material: SS - Stainless Steel
• Ball Material: SS - Stainless Steel
• Body Material: Carbon Steel
• Valve Operator: CS Standard Lever Handle
• Description: T580CSR66 1/4 THRD BALL 2PC SS TRIM CS
• Turns/Operation: Quarter-Turn
• Domestic / Import: Import
• End Style: FNPT
• Nominal Size: 1/4 in
• Port Type: Conventional
• Softgoods Material: PTFE
• Actuator Type: Standard Lever
• Inlet to Outlet Length: 2.3
• Manufacturer: NIBCO Inc.
• Manufacturer #: NL94GI4
• Media: Water/Chemical
• Orifice Size: 0.38
• Pressure Rating: 2000 psi
• Series: T-580-CS-R-66
• Temperature Rating: 400 deg F
• Top to Inlet Center: 2.22
• Trim Material: Stainless Steel Stem
• Number Of Pieces: 2
• Model: T-580-CSR-66
• Ball Body Type: Two-Piece
• Ball Port Style: Conventional Port
• Potable Water Code: Not LL Comp not intend potable
• End Connection: FNPT x FNPT
• Handle Type: Lever
• UNSPSC Code: 40141607
• Ball & Stem Material: Stainless Steel
• End Connections: Threaded
