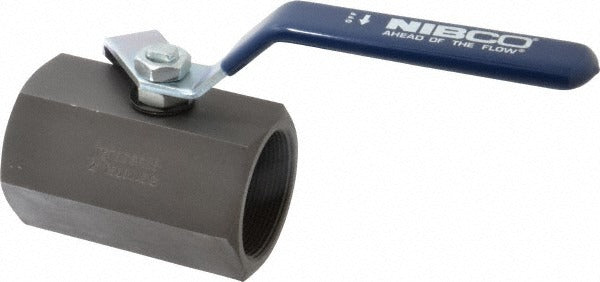

Nibco NL94GFD 2 in Ball Valve Carbon Steel Fnpt 1500 Psi

Product Description

The NIBCO NL94GFD is a 1-piece standard manual ball valve rated for demanding industrial and commercial piping applications. Built with a carbon steel body and carbon steel trim, this valve handles pressures up to 1500 psi and temperatures up to 400 degrees F. The 2-inch FNPT x FNPT end connections allow direct threaded installation into existing pipework. A lever handle provides quick quarter-turn shutoff, making isolation fast and reliable during normal operation or service procedures. Reinforced polytetrafluoroethylene (RPTFE) seat and seal materials deliver chemical resistance and long service life under high-pressure, high-temperature conditions.

This valve is suited for high-pressure piping systems in industrial, commercial, and mechanical applications where a full-port or standard-port ball valve is required for reliable on/off flow control. Typical installations include compressed air lines, hydraulic systems, steam-related piping within rated limits, and general fluid service lines. Licensed pipefitters and mechanical contractors commonly specify this valve in process and utility piping where working pressures exceed the range of standard brass or bronze valves.

Key Features

• 1-piece carbon steel body rated to 1500 psi working pressure
• Maximum working temperature of 400 degrees F
• FNPT x FNPT end connections for threaded pipe installations
• Lever handle for quick quarter-turn manual operation
• Reinforced PTFE seat and seal materials for chemical and thermal resistance
• Compact 1-piece valve structure simplifies installation and reduces potential leak points

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for 2-inch threaded pipe systems requiring carbon steel construction and high-pressure ratings.

Installation Notes

Installation should be performed by a licensed pipefitter or qualified mechanical contractor in accordance with applicable codes such as ASME B31.3 for process piping. Depressurize and drain the line completely before removing or installing any valve. Ensure thread engagement and appropriate thread sealant are used on all FNPT connections to prevent leaks under pressure. Do not exceed the rated working pressure or temperature stated on the valve body.
