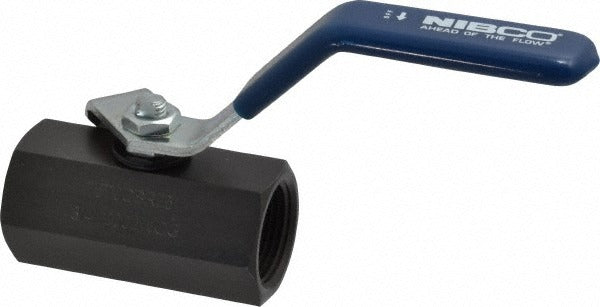

Nibco NL94GF8 Ball Valve 3/4 Inch Fnpt 1500 Psi Carbon Steel

Product Description

The NIBCO NL94GF8 is a 1-piece standard manual ball valve designed for on/off flow control in high-pressure piping systems. It features a 3/4 inch FNPT x FNPT end connection, a carbon steel body and trim, and reinforced PTFE seats and seals. The lever handle allows for quick quarter-turn operation. Rated to 1500 psi and 400 degrees F maximum working temperature, this valve is built for demanding industrial and commercial plumbing applications. Licensed plumbers, pipefitters, and mechanical contractors are the typical installers.

This valve is suited for use in commercial and industrial piping systems where high-pressure shutoff capability is required. The 3/4 inch pipe size makes it a common fit for branch lines, equipment isolation, and service connections in hydronic heating, process piping, and general plumbing applications. The FNPT x FNPT connection is compatible with standard threaded pipe and fittings on both ports, simplifying installation in new construction and retrofit work.

Key Features

• 1-piece carbon steel body for strength and durability in high-pressure service
• Rated to 1500 psi maximum working pressure
• Maximum working temperature of 400 degrees F
• Reinforced PTFE seats and seals for chemical resistance and long service life
• Quarter-turn lever handle for fast open/close operation
• 3/4 inch FNPT x FNPT end connections for standard threaded pipe installation

Compatibility

Designed as an OEM-style replacement or direct installation valve for 3/4 inch threaded pipe systems requiring high-pressure manual shutoff service.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local mechanical and plumbing codes. Depressurize and drain the system completely before removing or installing any valve. Use thread sealant or PTFE tape on all threaded connections and torque fittings to the pipe manufacturer's specification. Confirm that system pressure and temperature ratings do not exceed the valve's listed maximums before returning the system to service.
