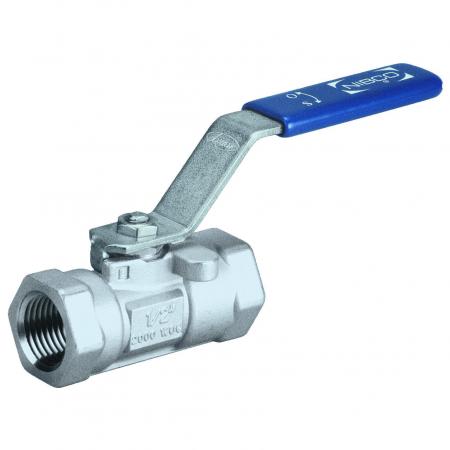

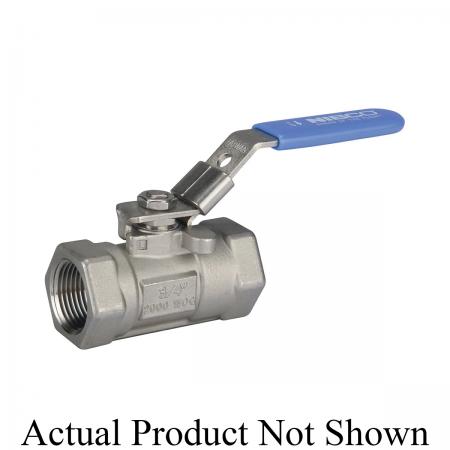

NIBCO INC NL943KCP T560S6R66LL 1-1/2 THRD BALL LKG HNDL SS

Product Description

NIBCO INC NL943KCP is a ball valve designed for reliable performance. This valve includes a locking lever handle and stainless steel construction, making it suitable for various applications. It has a nominal size of one and a half inches, with a pressure rating of one thousand psi and a temperature rating of four hundred degrees Fahrenheit.

• Stainless steel body and ball
• Locking lever handle included
• Designed for water media

Product Highlights

This valve is built for commercial and industrial use. It is designed to withstand challenging environments while providing effective flow control.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Nominal Size: 1-1/2 inches

Technical Specifications

• Actuator Type: Locking Lever Handle
• Ball Material: Stainless Steel
• Body Material: Stainless Steel
• End Style: NPT
• Inlet to Outlet Length: 3.86 inches
• Media: Water
• Orifice Size: 1 inch
• Port Type: Reduced
• Pressure Rating: 2000 psi
• Series: T-560-S6R-66-LL
• Softgoods Material: PTFE
• Temperature Rating: 400 degrees Fahrenheit
• Top to Inlet Center: 3.29 inches
• Trim Material: 316 Stainless Steel Stem and RPTFE Seat
• Type: 1-Piece
