NIBCO INC NL943K8P T560S6R66LL 3/4 THRD BALL LKG HNDL SS

Product Description

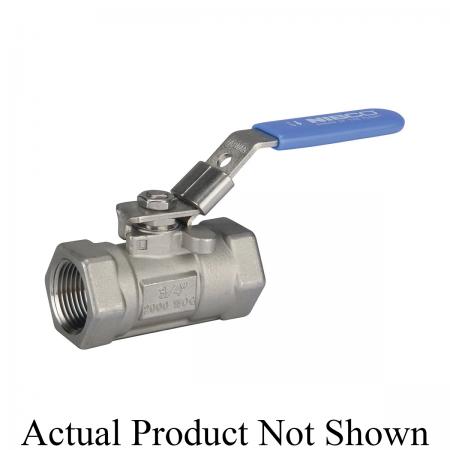

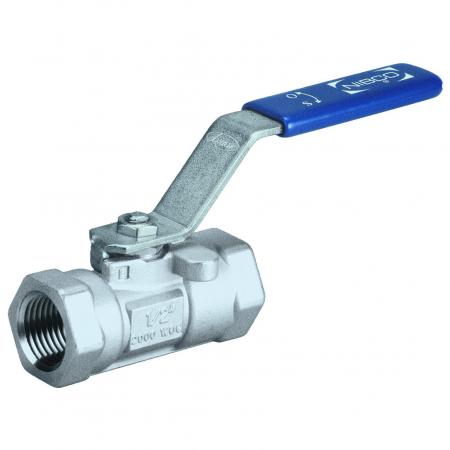

NIBCO INC NL943K8P is a reliable ball valve designed for various applications. This one-piece, three-quarter inch threaded ball valve features a locking lever handle for secure operation. It is built to withstand high pressure and temperature, making it suitable for critical piping systems.

• Pressure rating up to 2000 psi
• Constructed from stainless steel
• Locking lever handle ensures safety

Product Highlights

This valve is ideal for fluid control in plumbing and HVAC systems.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• UPC: 039923668523

Technical Specifications

• Actuator Type: Locking Lever Handle
• Ball Material: Stainless Steel
• Body Material: Stainless Steel
• Port Type: Reduced
• Temperature Rating: 400 deg F
• Pressure Rating: 2000 psi
• Trim Material: 316 Stainless Steel Stem and RPTFE Seat
• Nominal Size: 3/4 in
• Inlet to Outlet Length: 2.83 in
• Top to Inlet Center: 2.2 in
• Domestic/Import: Import
