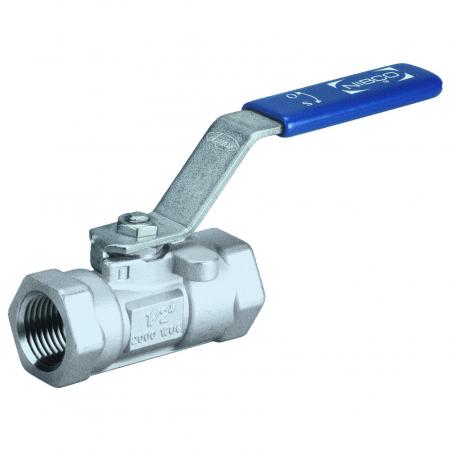

NIBCO INC NL943K5P T560S6R66LL 3/8 THRD BALL LKG HNDL SS

Product Description

The NIBCO INC NL943K5P is a T560S6R66LL three eighths inch threaded ball valve with a locking handle. This valve is designed for water media and is suitable for commercial and industrial applications. It features a robust construction that supports a pressure rating of up to one thousand psi and a temperature rating of four hundred degrees Fahrenheit. The valve includes a stainless steel body and trim which ensures durability and resistance to corrosion.

• Pressure rating of one thousand psi
• Locking lever handle for secure operation
• Suitable for water media in commercial applications

Product Highlights

This ball valve is ideal for applications requiring reliable fluid control.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Model Number: T560S6R66LL

Technical Specifications

• Actuator Type: Locking Lever Handle
• Ball Material: Stainless Steel
• Body Material: Stainless Steel
• Domestic/Import: Import
• End Style: NPT
• Inlet to Outlet Length: 2.28 inches
• Media: Water
• Nominal Size: 3/8 inches
• Orifice Size: 0.31 inches
• Port Type: Reduced
• Pressure Rating: 2000 psi
• Series: T-560-S6R-66-LL
• Softgoods Material: PTFE
• Temperature Rating: 400 degrees Fahrenheit
• Top to Inlet Center: 1.97 inches
• Trim Material: 316 Stainless Steel Stem and RPTFE Seat
• Type: 1-Piece
