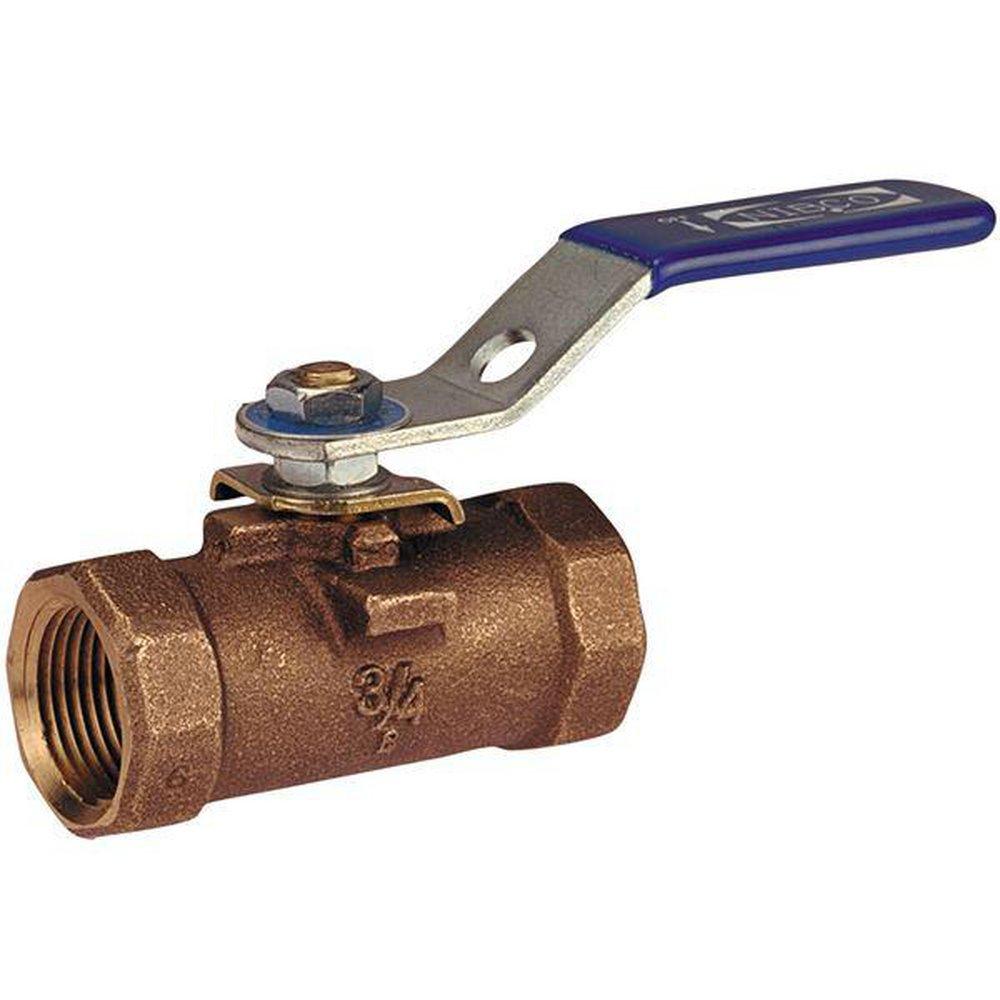

Nibco NL940P8 T-560-BR-R-20 3/4 in DZR Bronze NPT 600# Ball Valve

Product Description

The NIBCO NL940P8 is a T-560-BR-R-20 three fourths inch DZR bronze NPT ball valve designed for use in various plumbing applications. It features a robust one-piece design with a quarter turn actuator for easy operation.

• Rated for up to 600 psi pressure.
• Manufactured from durable bronze material.
• Standard lever handle ensures ease of use.

Product Highlights

This valve is suitable for hot and cold water systems, HVAC applications, and light chemical services. The reduced port design helps minimize turbulence and energy loss, making it ideal for a variety of hydraulic needs.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Part Number: NL940P8

Technical Specifications

• Actuator Type: Standard Lever Handle
• Ball Material: Brass
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 2.88 inches
• Media: Hot/Cold Water
• Nominal Size: 3/4 inches
• Orifice Size: 1/2 inch
• Port Type: Reduced
• Pressure Rating: 600 psi
• Series: T-560-BR-R-20
• Softgoods Material: PTFE
• Temperature Rating: 400 degrees F
• Top to Inlet Center: 1.5 inches
• Trim Material: Silicon Bronze Stem
• Type: 1-Piece 1/4 Turn
