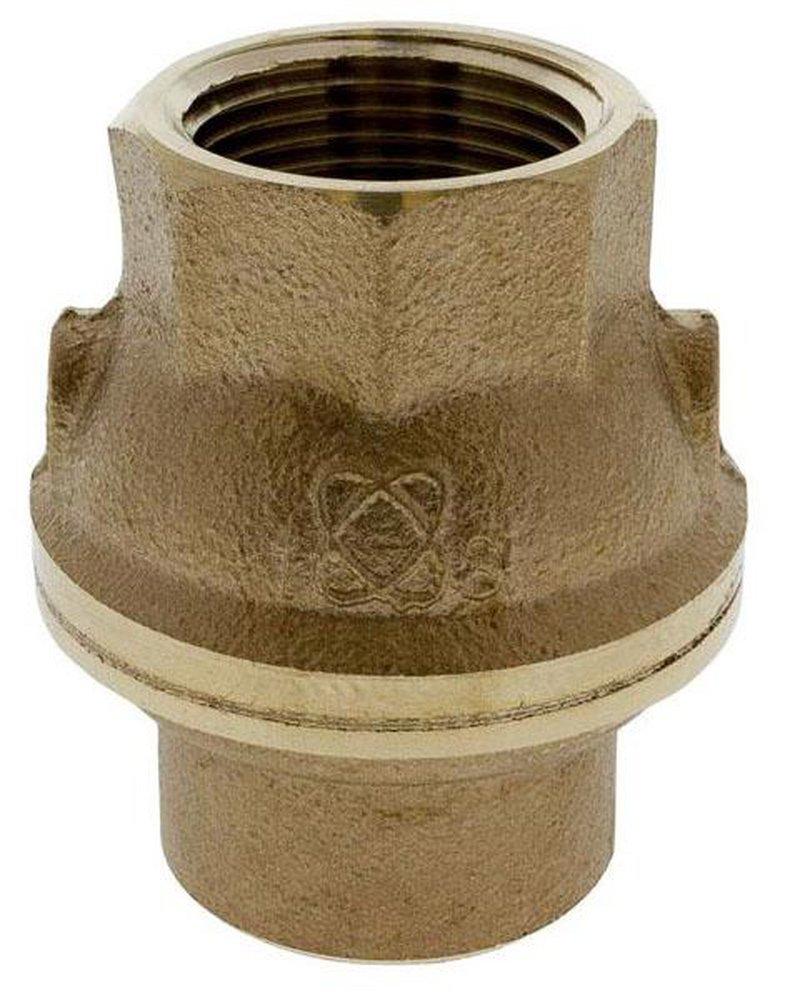

NIBCO NL932XD T480Y-LF 2 THRD RING CK VALVE LSR BRZ

Product Description

The NIBCO NL932XD T480Y-LF 2 in. ring check valve is designed for a variety of plumbing applications. It features a non-manual operation with a nominal size of two inches, allowing for efficient handling of water flow. This check valve is constructed from silicon bronze, which is durable and resistant to corrosion.

• Valve pressure rating of 250 psi
• PTFE resilient seat disc for effective sealing
• 500 working pressure for various applications

Product Highlights

This valve is suitable for human consumption applications, including both residential and commercial construction.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Application: Water

Technical Specifications

• Actuator Type: Spring
• Body Material: Silicon Bronze
• Nominal Size: 2 in
• Dimensions: 3.6 in Diameter
• Pressure Rating: 250 psi
• Temperature Rating: 300 deg F
• Inlet to Outlet Length: 3.71 in
• End Style: NPT
• Pressure Class: 125 lb
• Domestic/Import: Domestic
