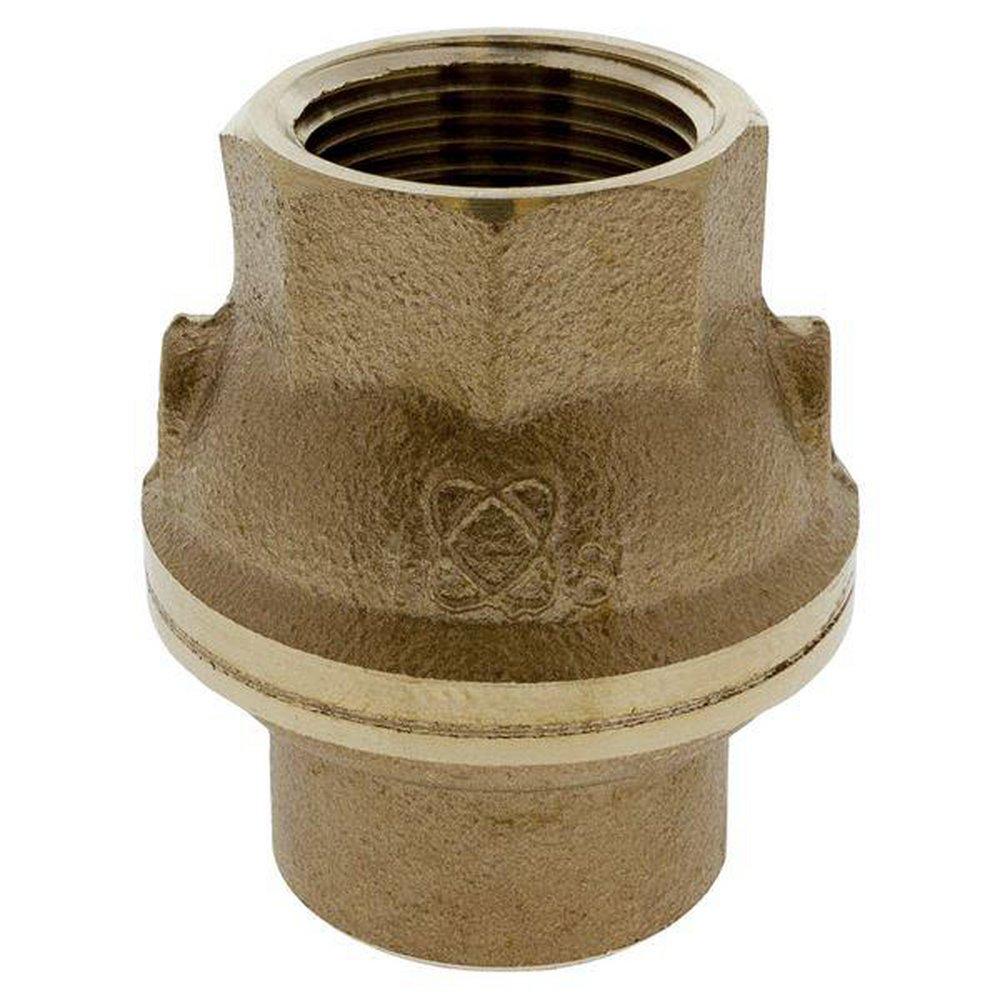

NIBCO NL932XC T-480-Y-LF 1-1/2 in. Bronze NPT Check Valve

Product Description

The NIBCO NL932XC is a T-480-Y-LF 1-1/2 inch Bronze NPT Check Valve. This valve is designed for in-line applications featuring a non-manual operation. It is suitable for water media and can handle a pressure rating of 250 psi. The valve has a silicon bronze body, PTFE/Stainless Steel trim, and a compact design with an inlet to outlet length of 3.15 inches.

• Valve pressure rating: 250 psi
• Nominal size: 1-1/2 inches
• Durable silicon bronze body

Product Highlights

This valve is ideal for applications involving human consumption, including residential and commercial constructions.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Series: T-480-Y-LF

Technical Specifications

• Actuator Type: Spring
• Body Material: Silicon Bronze
• Nominal Size: 1-1/2 inches
• Media: Water
• End Style: NPT
• Pressure Class: 125 lb
• Pressure Rating: 250 psi
• Temperature Rating: 300 degrees F
• Inlet to Outlet Length: 3.15 inches
• Dimensions: 2.94 inches diameter
• Domestic/Import: Domestic
