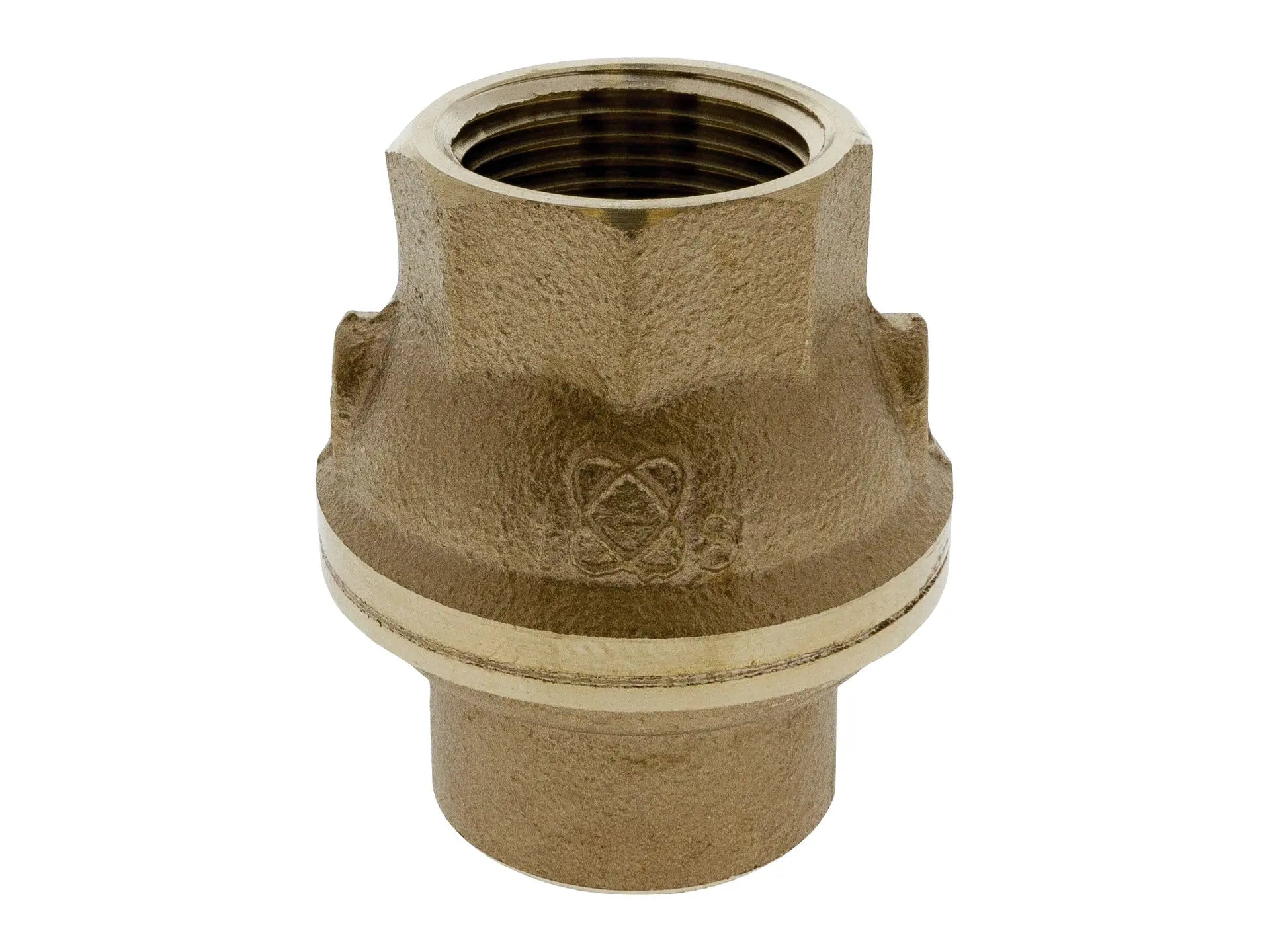

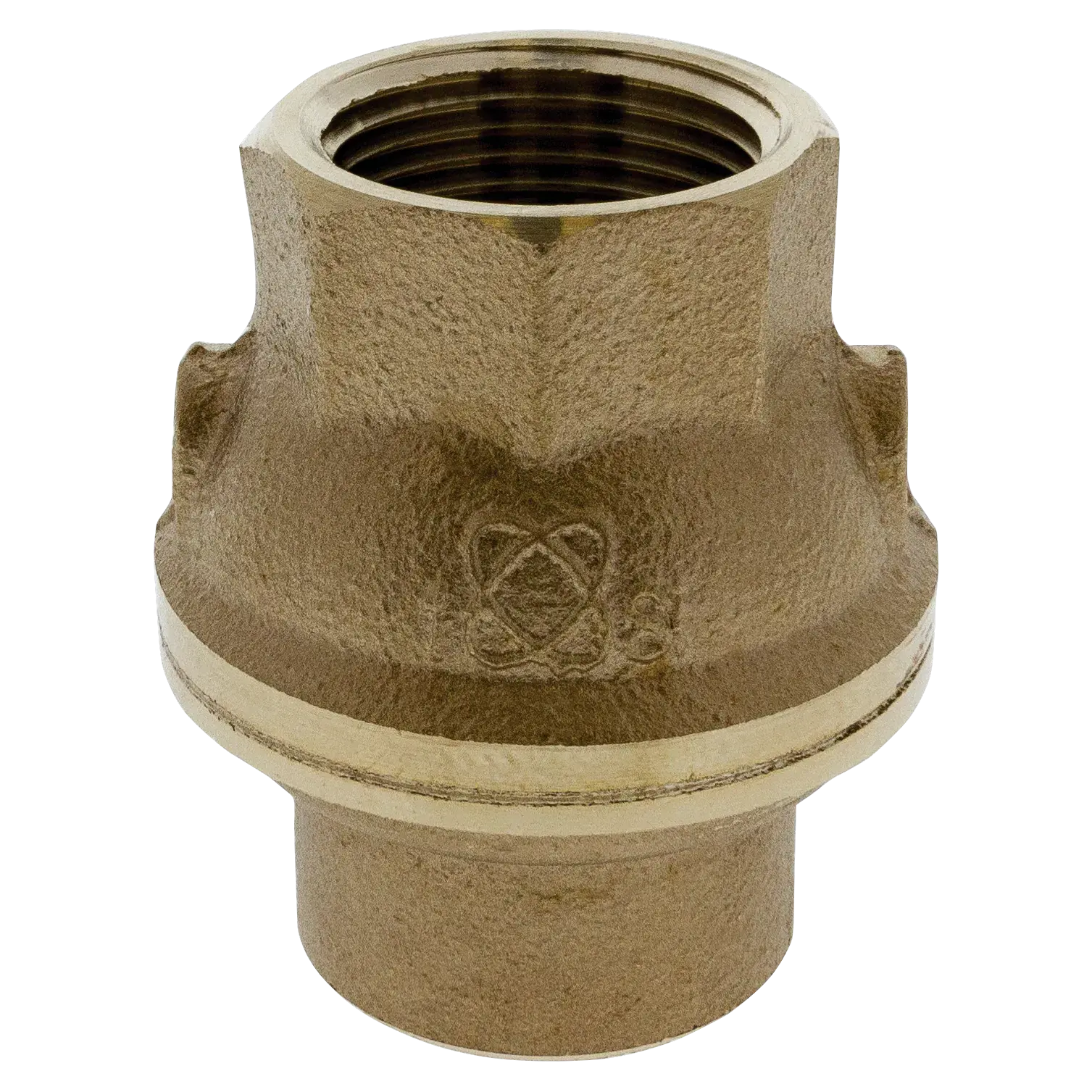

Nibco NL932XB T-480-Y-LF Check Valve 1-1/4 inches

Product Description

The NIBCO NL932XB T-480-Y-LF check valve has threaded end connections for ease of installation. This lift check valve prevents backflow by automatically closing when fluid reverses direction. It is spring actuated with a PTFE resilient seat disc and Class 125 threaded end connections. It can be installed in horizontal or vertical positions with flow moving up.

• Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
• In-line lift-type
• Spring actuated

Product Highlights

The NIBCO check valve is a versatile and economical valve option in commercial and residential applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL932XB
• Country of Origin: US

Technical Specifications

• Material: Bronze
• Thread: FNPT
• Valve pressure rating: 250 psi/17.2 bar non-shock cold working pressure
• Approval: NSF-61-G approved
• Seat disc: PTFE resilient seat disc
• Type: Check Valve
• CWP: 250 PSI
• Actuation: Spring actuated
• End connections: Class 125 threaded end connections
• UPC Code: 039923407603
• Valve Size: 1 1/4"
• Connection Type: T -- Female NPT Thread (FIPT)
• Description: T480Y-LF 11/4 THRD RING CK VALVE LSR BRZ
• eClass Classification: Inline Lead-Free* Bronze Check Valves
• Turns/Operation: Non-Manual
• Manufacturer: NIBCO
• Part Number: NL932XB
• Model: T-480-Y-LF
• Valve Type: Check Valve
• Valve Pattern: In-Line
• Lead-Free: Yes
• Connection: 1-1/4" Female NPT Thread (FIPT)
• Cold Working Pressure: 250 psi
• Disc Style: Resilient
• Disc Material: PTFE
• Type of Check Valve: Inline
• Potable Water Code: LL Compliant NSF/ANSI 372
• Length: 2.9"
• Width: 2.36"
• Height: 2.36"
• Marking: NIBCO double-oval lead-free body marking
• Lead-free: NSF/ANSI/CAN-61 and 372
• Body Material: Silicon Bronze
• Dimensions: 2.896 in L x 2.356 in W x 2.356 in H
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 2.83 in
• Low Lead Compliance: Yes
• Media: Water
• Nominal Size: 1-1/4 in
• Pressure Rating: 250 psi CWP
• Series: T-480-Y-LF
• Softgoods Material: PTFE
• Temperature Rating: 300 deg F
• Trim Material: PTFE
• Item: Check Valve
• Connection Size: 1 1/4"
