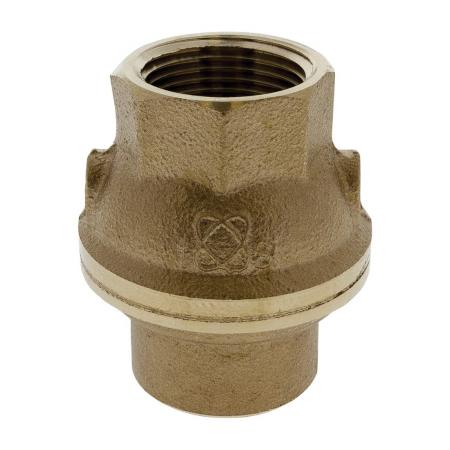

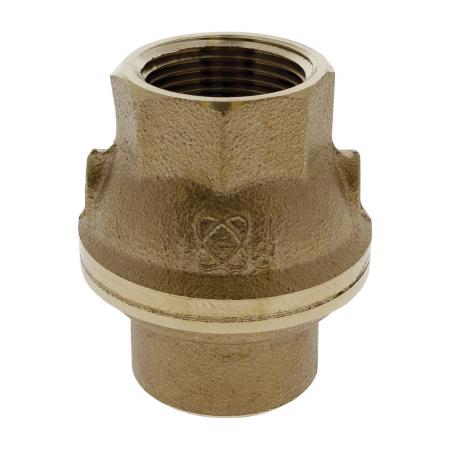

NIBCO NL932XA T-480-Y-LF 1 in. Bronze FNPT Spring Check Valve

Product Description

The NIBCO Ring Check In-line Lift Check Valve, model NL932XA, is designed for use in residential and commercial applications. It features a one inch nominal size with FNPT end connections for easy installation. This valve has a pressure rating of 250 psi, which makes it suitable for various water media applications. The silicon bronze construction ensures durability and longevity of the product.

• Pressure rating of 250 psi/17.2 bar non-shock cold working pressure
• PTFE resilient seat disc for reliable performance
• Low lead compliant for safety and environmental standards

Product Highlights

This check valve is ideal for horizontal or vertical installations. The spring actuator contributes to its reliability and ease of use.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Model Number: NL932XA

Technical Specifications

• Actuator Type: Spring
• Body Material: Silicon Bronze
• End Style: FNPT
• Inlet to Outlet Length: 2.59 inches
• Low Lead Compliance: Yes
• Media: Water
• Nominal Size: 1 inch
• Pressure Rating: 250 psi CWP
• Series: T-480-Y-LF
• Softgoods Material: PTFE
• Temperature Rating: 300 degrees F
• Trim Material: PTFE
