Product Description
The Nibco NL932X6 is a 1/2 inch threaded ring check valve. This valve features a robust design ideal for both horizontal and vertical applications. It is spring actuated and allows for easy in-line installation. The valve helps prevent backflow in plumbing systems.
- Nominal Size is 1/2 inch.
- Female threaded end connections.
- Body material is silicon bronze.
Product Highlights
This valve is suitable for commercial and residential use, providing a reliable solution to maintain flow direction in various plumbing applications.
Product Information
Standard Information
-
Manufacturer: Nibco
-
MPN: NL932X6
Technical Specifications
-
Type: Horizontal/Vertical, Spring Actuated, In-Line Lift
-
End Connection: Female Threaded x Female Threaded
-

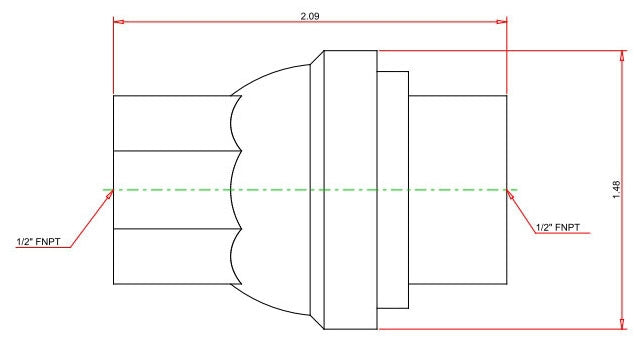

End to End Distance: 2.06 inches
-
Pressure Rating: Class 125, 100 PSI at 300 degrees F, 250 PSI CWP (Non-Shock)
-
Body Material: ASTM B584 C87850 Dezincification Resistant Silicon Bronze Alloy
-
Disc Material: PTFE
-
Spring Material: 316 Stainless Steel
-
Seal Material: PTFE
-
Seat Material: PTFE
-
Applicable Standards: NSF/ANSI 61/372, MSS SP-139, ISO 9001
-
Lead-Free: Yes
