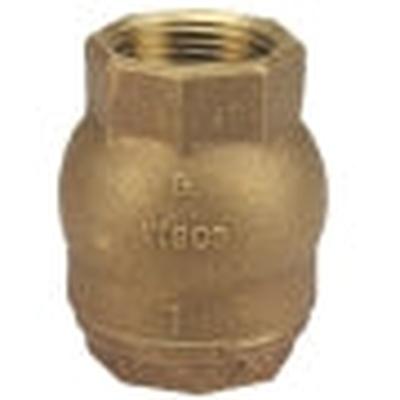

Nibco NL931XD T480Y-LF 2 THRD RING CK VALVE BRZ

Product Description

The Nibco NL931XD is a stainless steel and bronze in-line check valve. This check valve features a two-inch nominal size with FNPT end connections. It supports a pressure rating of two hundred fifty psi and operates effectively at temperatures up to three hundred degrees Fahrenheit.

• Lead-free construction for safety
• Spring actuated mechanism for reliability
• Compliant with applicable standards for quality assurance

Product Highlights

This check valve is designed for use in both commercial and residential applications. Its sturdy construction ensures long-lasting performance in demanding environments.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Model: T-480-Y-LF

Technical Specifications

• Actuator Type: Spring
• Body Material: Bronze
• Trim Material: Stainless Steel/PTFE Seat Disc
• Nominal Size: 2 in
• End Style: FNPT
• Pressure Class: 125 lb
• Pressure Rating: 250 psi
• Low Lead Compliance: Yes
• Temperature Rating: 300 deg F
• Inlet to Outlet Length: 3.69 in
