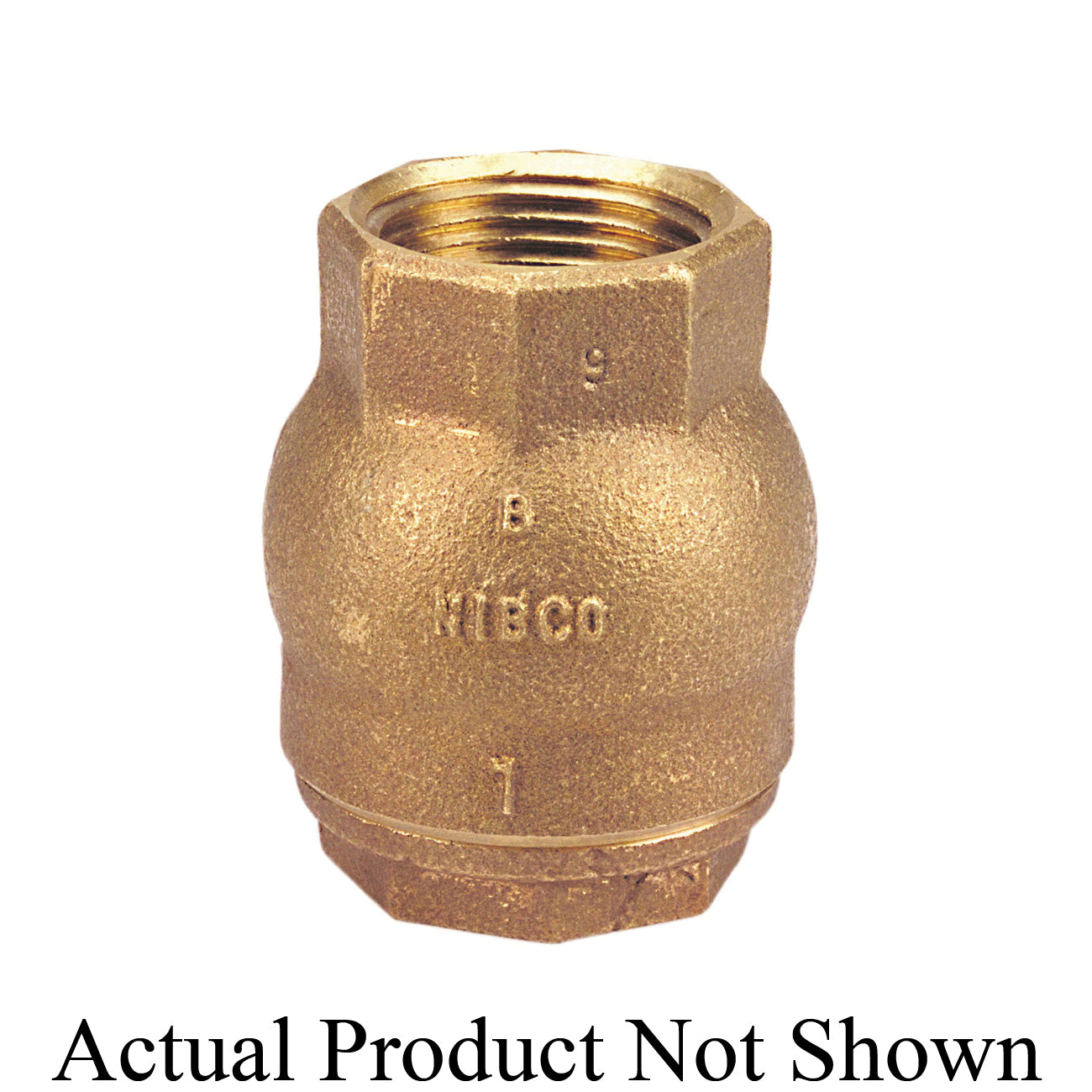

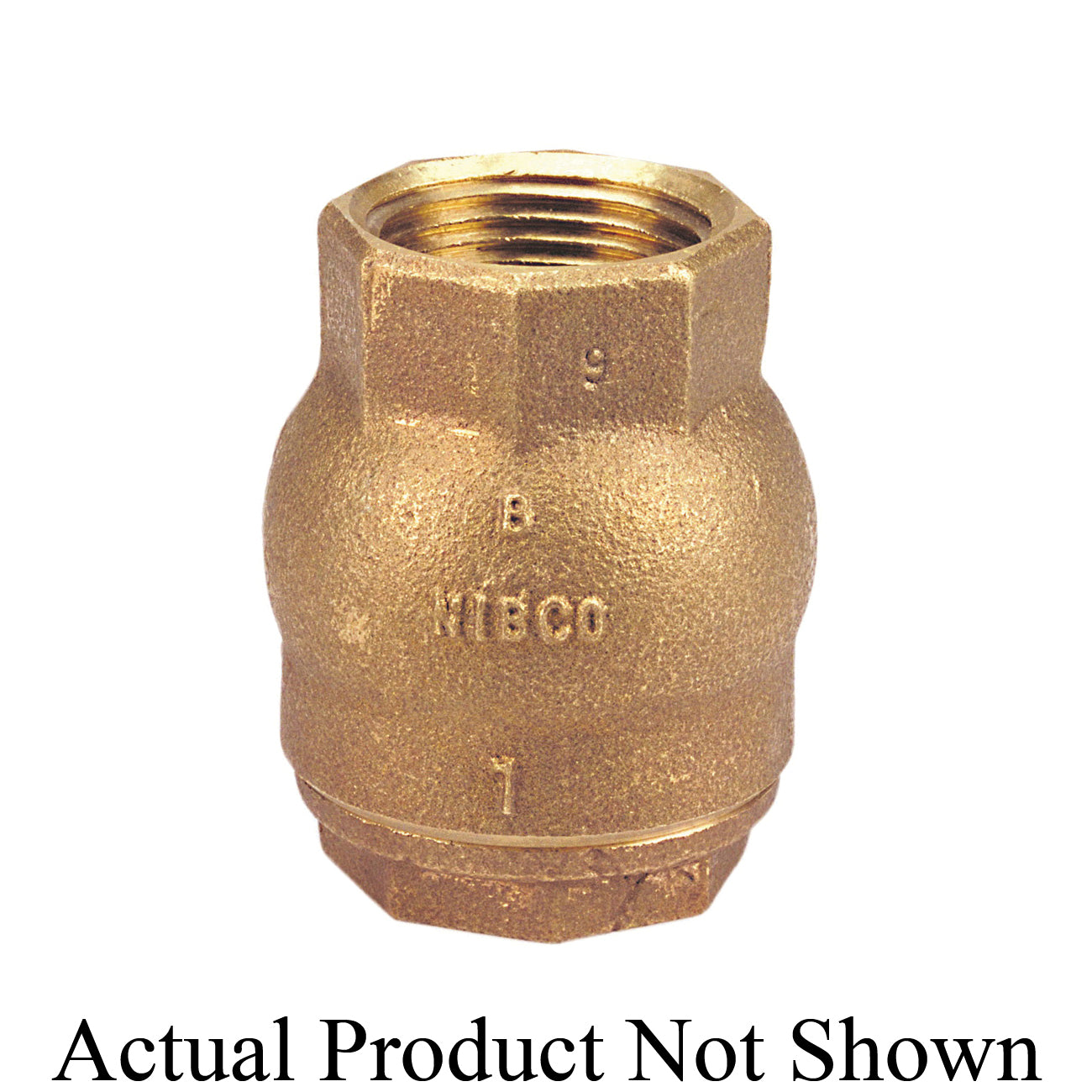

NIBCO NL9318C In-Line Lift Check Valve 1-1/2 in Nominal FNPT 125 lb

Product Description

The NIBCO NL9318C In-Line Lift Check Valve features a bronze body with threaded end connections for installation ease. Designed for both horizontal and vertical installations, it ensures reliable operation in plumbing systems. This valve is suitable for use in commercial, mechanical, and industrial applications.

• Rated for 250 psi with a temperature limit of 353 degrees F.
• Spring actuator for quick response and operation.
• Backed by a 5-year 125% limited warranty.

Product Highlights

Durable and versatile, the NIBCO NL9318C check valve is ideal for various plumbing needs.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• Model Number: NL9318C

Technical Specifications

• Actuator Type: Spring
• Body Material: Bronze
• Dimensions: 2-3/4 inches L
• End Style: FNPT
• Inlet to Outlet Length: 3.31 inches
• Nominal Size: 1-1/2 inches
• Pressure Class: 125 lb
• Pressure Rating: 250 psi
• Series: T-480-Y
• Softgoods Material: Buna-N
• Temperature Rating: 353 degrees F
• Trim Material: Stainless Steel/PTFE
• Type: Lift
