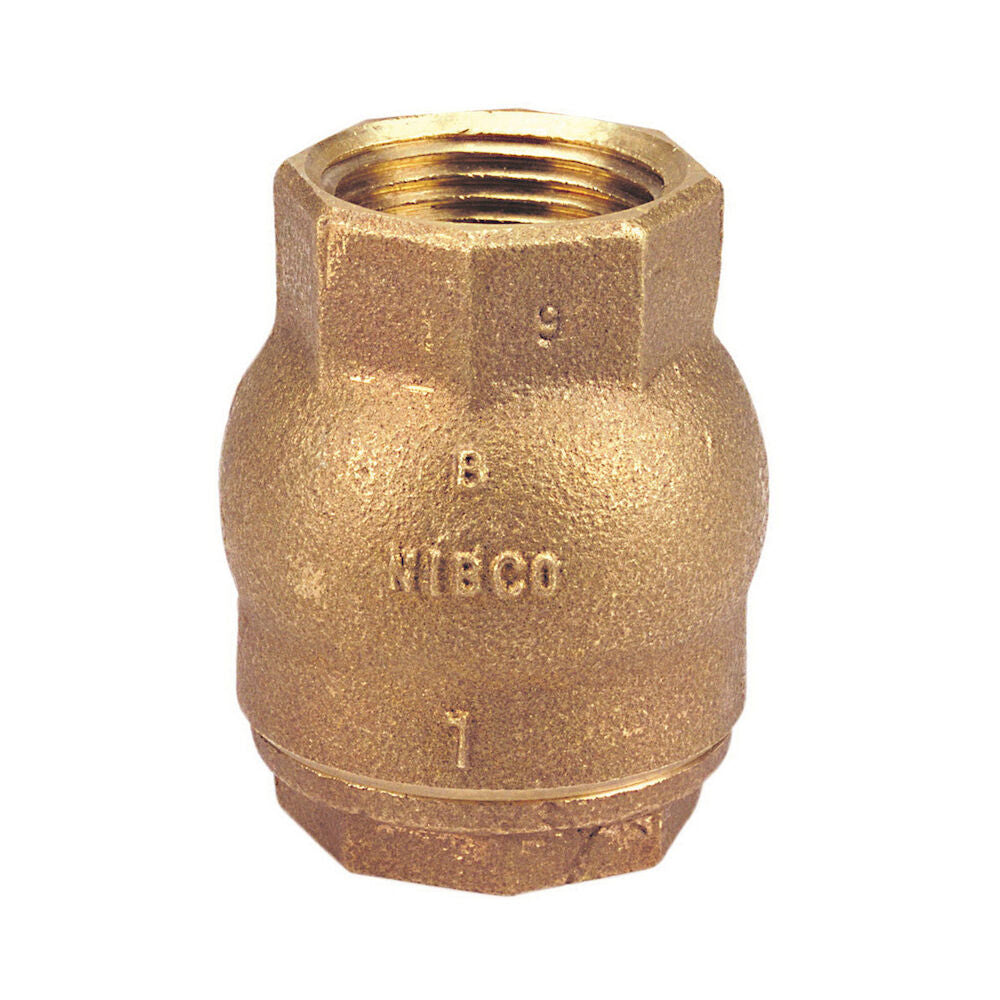

NIBCO NL9318A T-480-Y In-Line Lift Check Valve 1 in FNPT 125 lb

Product Description

The NIBCO NL9318A check valve is designed with threaded end connections for easy installation. It can be installed in both horizontal and vertical positions with flow moving upwards. This check valve is ideal for commercial, mechanical, and industrial applications. The product is backed by a five-year warranty.

• In-Line lift design prevents backflow.
• Can be used with steam service due to the PTFE disc.
• Threaded connections enhance installation options.

Product Highlights

This check valve offers reliability and ease of use in various plumbing systems.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• Part Number: NL9318A

Technical Specifications

• Actuator Type: Spring
• Body Material: Bronze
• End Style: FNPT
• Nominal Size: 1 in
• Pressure Rating: 250 psi
• Temperature Rating: 353 deg F
• Inlet to Outlet Length: 2.63 in
• Series: T-480-Y
• Trim Material: Stainless Steel/PTFE
• Softgoods Material: Buna-N
