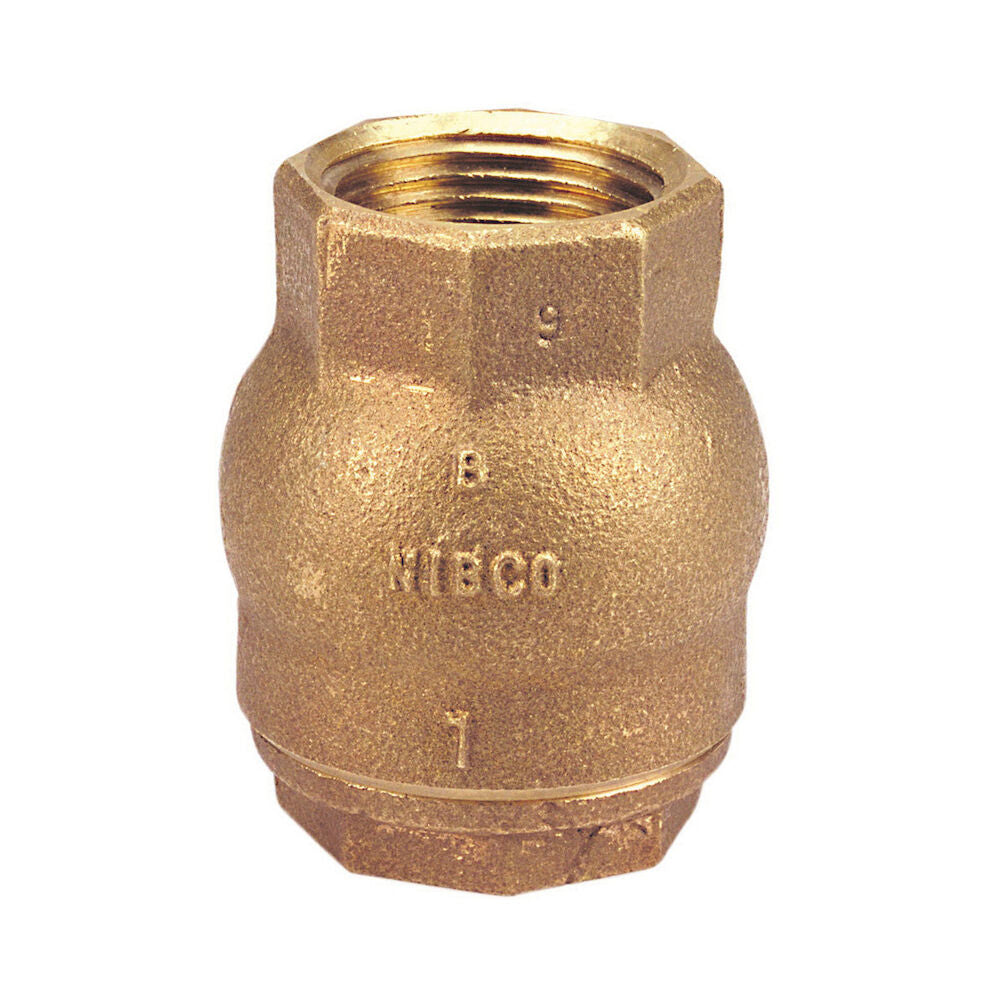

NIBCO NL93188 In-Line Lift Check Valve, 3/4 in Nominal, FNPT End Style, 125 lb

Product Description

The NIBCO NL93188 In-Line Lift Check Valve features durable bronze construction and is designed for reliable performance in various applications. This valve can be installed in both horizontal and vertical orientations, making it versatile for different piping configurations.

• Threaded end connections for easy installation
• Spring actuated for responsive operation
• PTFE resilient seat disc for steam service

Product Highlights

This valve is ideal for commercial, mechanical, and industrial uses where backflow prevention is essential. It operates efficiently under high pressure and temperature, confirming its reliability in demanding environments.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• Series: T-480-Y

Technical Specifications

• Actuator Type: Spring
• Body Material: Bronze
• Dimensions: 1.63 in L
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 2-1/4 in
• Nominal Size: 3/4 in
• Pressure Class: 125 lb
• Pressure Rating: 250 psi
• Softgoods Material: Buna-N
• Temperature Rating: 353 deg F
• Trim Material: Stainless Steel/PTFE
• Type: Lift
