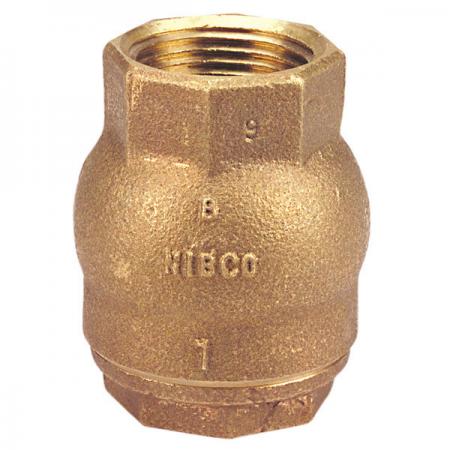

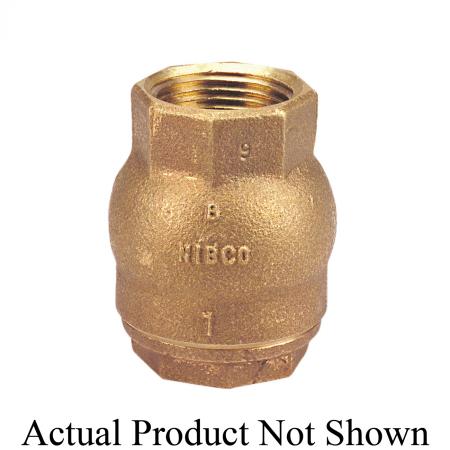

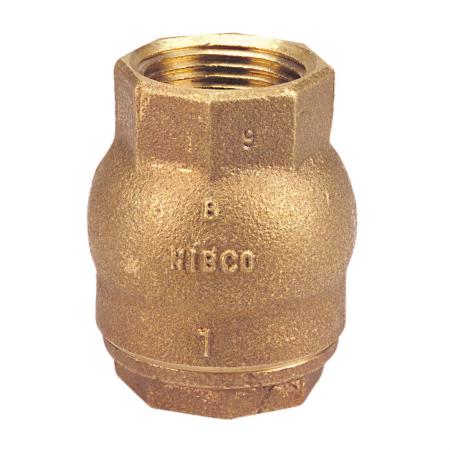

NIBCO NL93088 T480 3/4 Threaded Ring Check Valve Bronze

Product Description

The NIBCO NL93088 T480 is a three-quarters inch threaded ring check valve. This product is designed for effective fluid control in both residential and commercial applications. It features a spring actuator and is made from bronze for enhanced durability.

• Pressure rating of two hundred psi for cold working
• Dezincification resistant for extended performance
• Equipped with a Buna-N resilient seat disc

Product Highlights

The NIBCO NL93088 T480 check valve is suitable for various plumbing needs in both home and business settings.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Type: Lift

Technical Specifications

• Actuator Type: Spring
• Body Material: Bronze
• Dimensions: 1.63 inches long
• Inlet to Outlet Length: 2.25 inches
• Nominal Size: 3/4 inch
• Pressure Rating: 200 psi
• Temperature Rating: 180 degrees Fahrenheit
• Trim Material: Stainless Steel/Buna-N
• Domestic/Import: Domestic
