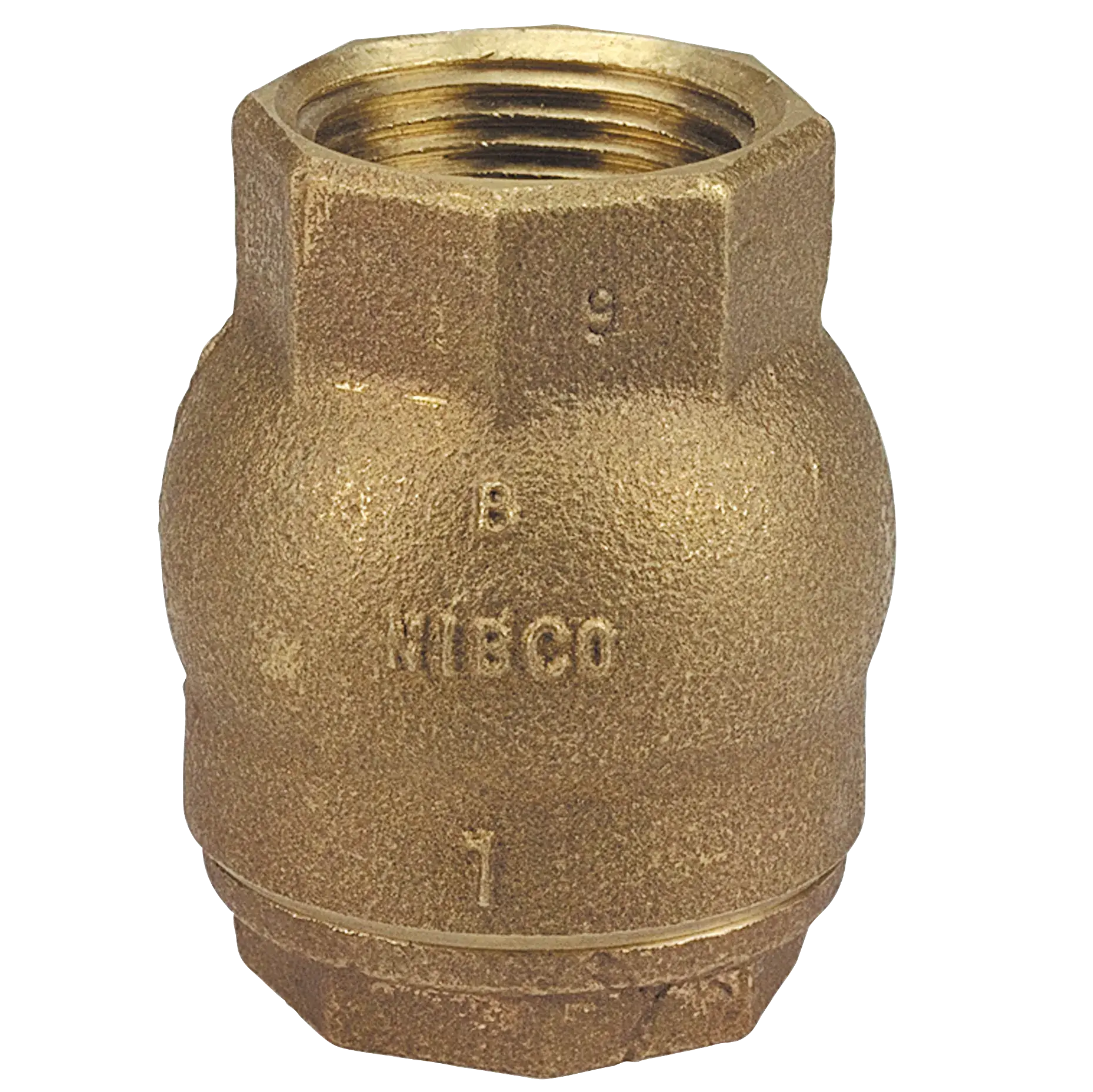

Nibco NL93085 T-480 Check Valve Bronze 3/8 Inch

Product Description

The NIBCO NL93085 Ring Check valve has threaded end connections for ease of installation. This check valve may be installed in horizontal positions or vertical with flow moving up. The lift check valve prevents backflow by automatically closing when fluid reverses direction. With a Buna-N disc, the check valve is recommended for water, oil or gas service.

• In-line lift-type
• Spring actuated
• Dezincification resistant

Product Highlights

The NIBCO Ring Check valve is the most specified, versatile and economical valve option in commercial and residential applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL93085
• Country of Origin: US

Technical Specifications

• UPC Code: 039923638229
• Type: Check Valve
• Valve Size: 3/8
• Connection Type: T -- Female NPT Thread (FIPT)
• Material: Bronze
• Cv Coefficient: 3.7
• Description: T480 3/8 THREADED RING CHECK VALVE BRNZ
• eClass Classification: Inline Bronze Check Valves
• Turns/Operation: Non-Manual
• Coefficient Of Volume: 3.7
• Valve pressure rating: 200 psi/14 bar non-shock cold working pressure
• Maximum temperature: 180 F/82.2 C
• Actuation: Spring actuated
• Resistant: Dezincification resistant
• Seat disc: Buna-N resilient seat disc
• End connections: FIPT threaded end connections
• Manufacturer: NIBCO
• Part Number: NL93B0D
• Model: T-480-BT
