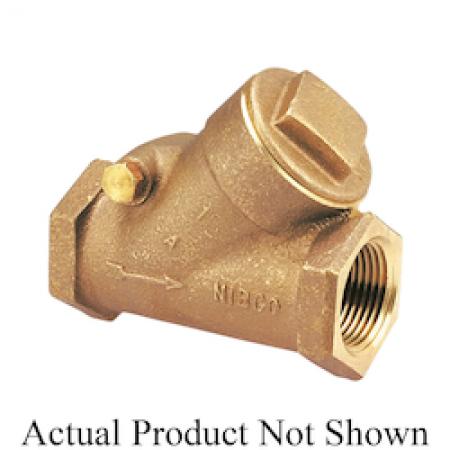

NIBCO NL9300C 1-1/2 IN BRONZE NPT CHECK VALVE 300 CLASS

Product Description

This NIBCO 1-1/2 inch bronze NPT check valve, model NL9300C, ensures reliable backflow prevention in your piping systems. Ideal for commercial, mechanical, and industrial applications, the valve supports a sturdy bronze construction and operates effectively under high pressure.

• Pressure rating up to 600 psi for non-shock cold working conditions.
• Designed with a renewable bronze disc and regrindable seat.
• Complies with MSS SP-80 standards and is not compliant with low lead requirements.

Product Highlights

Featuring a Y-pattern design, the valve facilitates minimal pressure drop across the valve. It also includes flanged end connections class 300, suited for robust installation scenarios.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Series: T473B
• Body Material: Bronze
• Trim Material: Bronze
• Softgoods Material: PTFE

Technical Specifications

• Nominal Size: 1-1/2 in
• End Style: NPT
• Pressure Class: 300 lb
• Pressure Rating: 600 psi
• Low Lead Compliance: No
• Inlet to Outlet Length: 4.94 in
• Top to Inlet Center: 3-3/4 in
