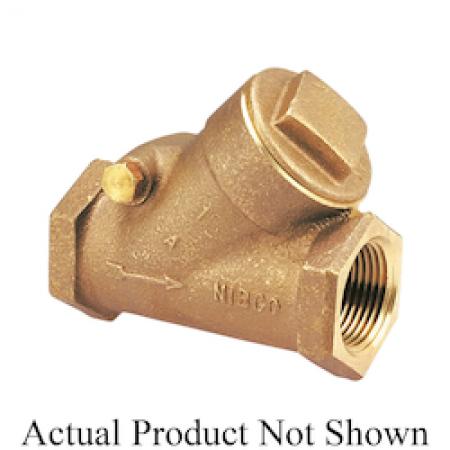

NIBCO NL9300B T473-B 11/4 THRD Bronze 300SWP/600CWP Horizontal Swing Check Valve

Product Description

The NIBCO NL9300B is a robust bronze swing check valve designed for horizontal installation, ensuring reliable backflow prevention in non-potable water systems. It is built to withstand up to six hundred psi of non-shock cold working pressure and three hundred psi saturated steam up to four hundred twenty-one degrees Fahrenheit.

• Utilizes a Y-pattern design for efficient flow.
• Features renewable bronze discs and a regrindable seat.
• Suitable for commercial, mechanical, and industrial applications.

Product Highlights

This valve is crafted from high-grade bronze with a trim of the same material, ensuring durability and reliability in demanding settings. Its internal components include a PTFE softgoods material, enhancing its performance under varying conditions.

Product Information

Standard Information

• Body Material: Bronze
• Trim Material: Bronze

Technical Specifications

• Manufacturer: NIBCO INC
• Nominal Size: 1-1/4 inches
• Pressure Class: 300 lb
• Pressure Rating: 600 psi
• Type: Y-Pattern
• Series: T473B
• End Style: NPT
• Softgoods Material: PTFE
• Top to Inlet Center: 3.13 inches
• Inlet to Outlet Length: 4.38 inches
