Product Description

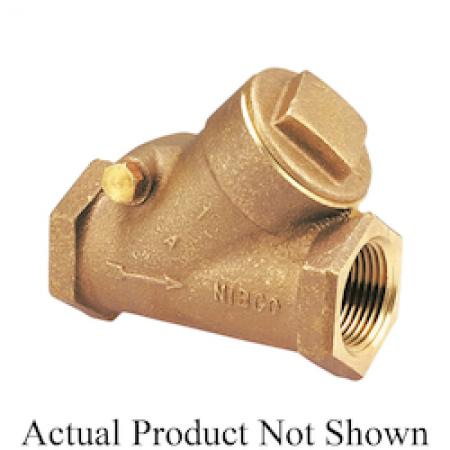

NIBCO INC NL93006 is a swing check valve with a Y-pattern design. It is part of the T473B series and has a half-inch nominal size with an NPT connection. This valve operates under a pressure class of 300 lb and a pressure rating of 600 psi. The valve features a bronze body and trim, ensuring durability in various commercial and industrial applications.
- Operates with a maximum of 300 psi for saturated steam and temperature up to four hundred twenty-one degrees Fahrenheit.
- Non-shock cold working pressure rated up to six hundred psi.
- Features renewable bronze discs and a regrindable seat for maintenance.
Product Highlights
This valve is suitable for multiple applications in commercial, mechanical, and industrial settings. It complies with ASTM B61 standards and is a domestic product.
Product Information
Standard Information

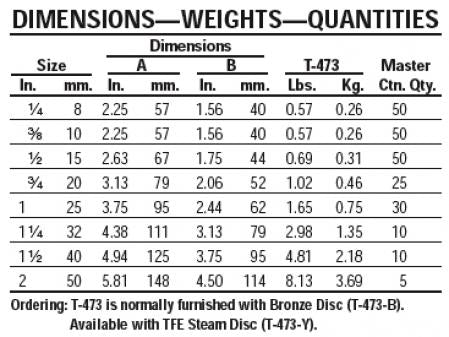

Technical Specifications
-
Nominal Size: 1/2 in
-
Body Material: Bronze
-
End Style: NPT
-
Pressure Class: 300 lb
-
Pressure Rating: 600 psi
-
Inlet to Outlet Length: 2.63 in
-
Top to Inlet Center: 1-3/4 in
-
Softgoods Material: PTFE
-
Series: T473B
-
Low Lead Compliance: No
-
Domestic/Import: Domestic
