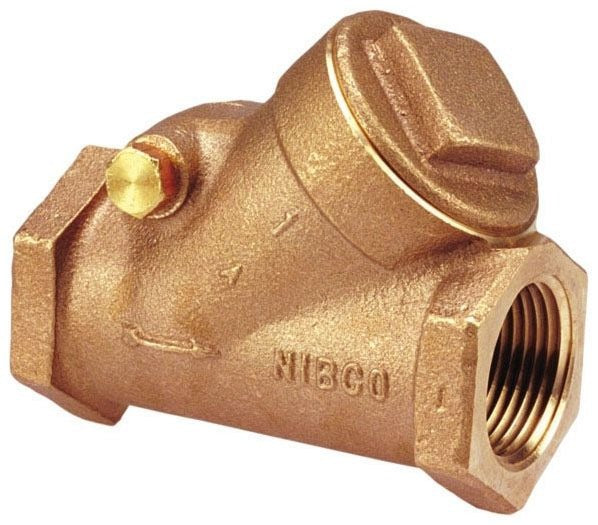

Nibco NL9200D Y-pattern Swing Check Valve 2 in Npt 300 Lb

Product Description

The NIBCO NL9200D is a Y-pattern swing check valve designed for commercial, mechanical, and industrial piping systems. It prevents backflow by allowing flow in one direction only, using a swinging disc against an integral seat. The valve body and trim are both bronze construction, rated at 600 psi and pressure class 300 lb. The Y-pattern body orientation reduces pressure drop compared to standard inline check valves. This valve is threaded with NPT end connections for straightforward installation into existing piping. It is domestically manufactured and suited for mechanical rooms, process piping, and industrial fluid systems.

This valve is intended for commercial, mechanical, and industrial applications where reliable backflow prevention is required in horizontal installations. The T-473-Y series Y-pattern design makes it well suited for systems where flow resistance needs to be minimized. Note that this valve is not rated for potable drinking water service per CA Section 116875 and carries a Low Lead Compliance designation of No. It should be selected for non-potable fluid service only.

Key Features

• Y-pattern swing check design reduces pressure drop across the valve
• Integral seat provides a reliable, leak-resistant seating surface
• Bronze body and bronze trim for durability in mechanical and industrial service
• 600 psi pressure rating at 300 lb pressure class
• NPT threaded end connections for standard pipe thread installation
• PTFE seat material for chemical compatibility and sealing performance
• Domestically manufactured

Compatibility

Designed as an OEM-style replacement or new-installation swing check valve for commercial, mechanical, and industrial piping systems using NPT threaded connections. Not suitable for potable drinking water service.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable mechanical and plumbing codes, including IPC guidelines. Isolate and depressurize the system fully before removing any existing valve or fitting. The Y-pattern body is designed for horizontal installation — verify orientation before threading into the line. Use appropriate thread sealant on all NPT connections and do not overtighten, as bronze fittings can be damaged by excessive torque.
