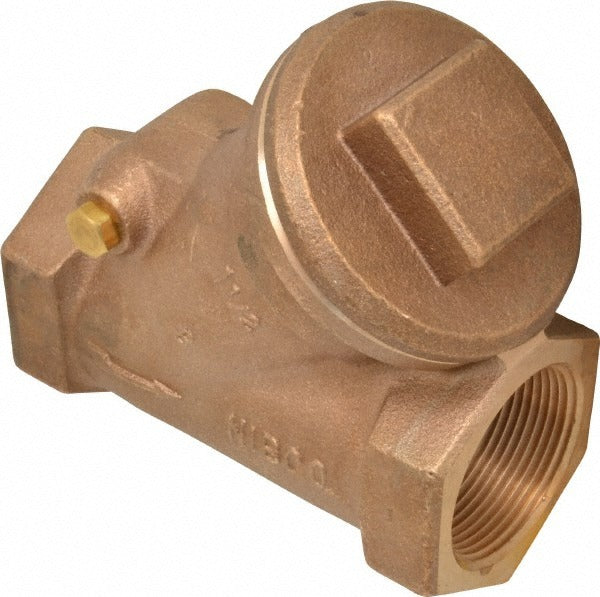

Nibco NL9200C Check Valve 1-1/2 in Y-pattern Fnpt 600 Wog

Product Description

The NIBCO NL9200C is a Y-pattern swing check valve designed for 1-1/2 inch threaded pipe systems. It allows flow in one direction and closes automatically to prevent backflow, protecting pumps, compressors, and piping systems from reverse-flow damage. The bronze body handles a maximum working pressure of 600 WOG (water, oil, gas) and is rated to 421 degrees F, making it suitable for a wide range of commercial and industrial plumbing applications. The PTFE seal material provides reliable seating and chemical resistance. Licensed plumbers and pipefitters are the primary installers of this valve in both new construction and retrofit work.

The NL9200C fits 1-1/2 inch female NPT threaded connections on both the inlet and outlet sides, making it a straightforward drop-in for standard threaded piping systems. The Y-pattern body design reduces turbulence and pressure drop across the valve compared to inline swing check designs. Typical installations include domestic water supply, hydronic heating loops, compressed air lines, and light oil service where backflow prevention and pressure retention up to 600 psi are required.

Key Features

• Bronze body construction for corrosion resistance in water, oil, and gas service
• Y-pattern design reduces flow restriction and pressure drop
• FNPT x FNPT end connections for standard threaded pipe installation
• 600 WOG maximum working pressure rating
• PTFE seal material for chemical resistance and reliable shutoff
• Rated to 421 degrees F maximum operating temperature

Compatibility

Designed as an OEM-style replacement or new-installation check valve for 1-1/2 inch FNPT threaded piping systems in commercial and residential plumbing, hydronic, and light industrial service.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the IPC. Shut off the water or fluid supply and fully depressurize the line before removing or installing any valve. Apply thread sealant or PTFE tape to the male threads of the mating pipe before assembly, and do not over-tighten bronze-body fittings. Confirm the flow-direction arrow on the valve body matches the intended flow direction before completing the installation.
