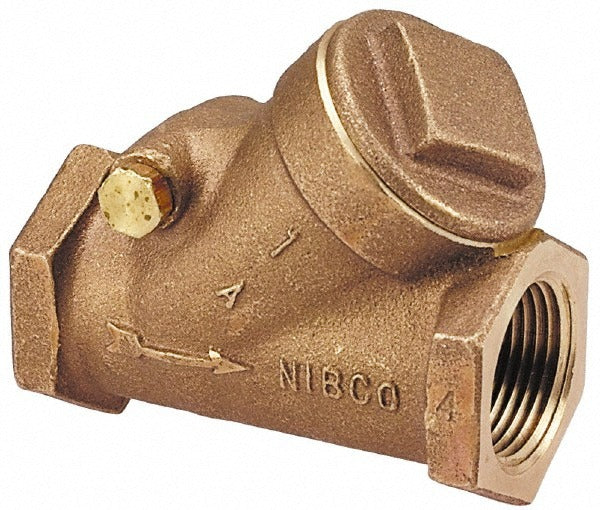

Nibco NL8300F Check Valve 3in Y-pattern Fnpt Bronze

Product Description

The NIBCO NL8300F is a 3-inch Y-pattern check valve designed to allow flow in one direction while preventing backflow in piping systems. Built with a bronze body and bronze seals, this valve is rated at 400 WOG (Water, Oil, Gas), making it a reliable choice for demanding commercial and industrial plumbing, HVAC hydronic, and mechanical piping applications. The female NPT connections on both ends allow for straightforward threaded installation into standard pipe runs. At 17.64 pounds, this is a substantial valve suited for permanent installations where backflow prevention is a critical system requirement. Licensed plumbers and mechanical contractors are the primary installers of this valve type.

The NL8300F is intended for use in 3-inch threaded piping systems where Y-pattern check valve geometry is specified. The Y-pattern body design provides a more direct flow path compared to swing-check alternatives, which can reduce pressure drop across the valve. Typical install scenarios include boiler rooms, chiller plants, pump discharge lines, and commercial mechanical rooms where bronze construction is appropriate for the fluid media and system pressures involved. Both FNPT connections conform to standard NPT thread dimensions for compatibility with standard pipe fittings.

Key Features

• Y-pattern body geometry for reduced flow restriction compared to inline swing-check designs
• Bronze body and bronze seal construction for corrosion resistance in water, oil, and gas service
• 400 WOG pressure rating for use in higher-pressure commercial and industrial systems
• FNPT x FNPT end connections for standard threaded pipe installation
• 3-inch pipe size suitable for high-flow commercial mechanical applications

Compatibility

Designed as an OEM-style threaded check valve for use in 3-inch NPT piping systems where a bronze Y-pattern check valve rated at 400 WOG is specified.

Installation Notes

Installation should be performed by a licensed plumber or qualified mechanical contractor in accordance with applicable local codes and the International Plumbing Code (IPC). Shut off and depressurize the piping system fully before removing any existing valve or installing this check valve. Use appropriate pipe thread sealant or PTFE tape on all NPT threads and confirm correct flow direction per the arrow or marking on the valve body before making final connections. Do not overtighten threaded connections, as bronze fittings can be damaged by excessive torque.
