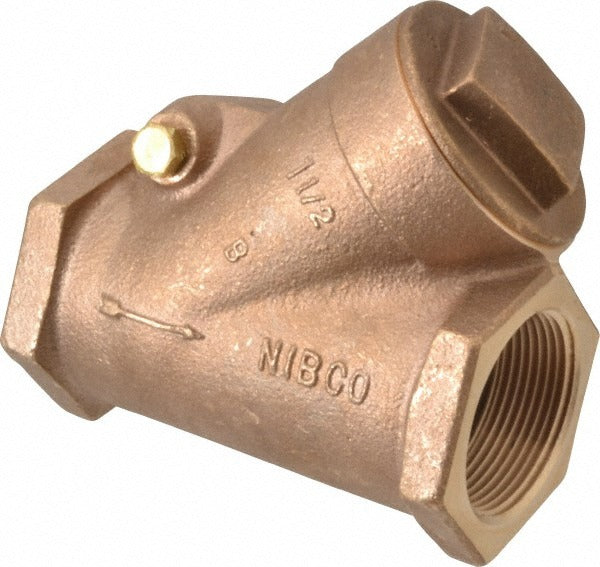

Nibco NL8300C Check Valve 1-1/2 in Y-pattern Fnpt 400 Psi

Product Description

The NIBCO NL8300C is a Y-pattern check valve designed to allow one-directional fluid flow while preventing backflow in plumbing and piping systems. Built with a bronze body and bronze sealing components, this valve handles demanding service conditions up to 400 psi working pressure and a maximum temperature of 391 degrees F. The 1-1/2 inch FNPT x FNPT end connections make it compatible with standard threaded pipe installations. Licensed plumbers and pipefitters install this type of valve in water supply, industrial fluid, and mechanical system applications where backflow prevention is required.

The Y-pattern design positions the check mechanism at an angle to the flow path, which reduces turbulence and pressure drop compared to swing-check or inline designs. This makes the NL8300C well suited for residential and light commercial plumbing systems, hydronic heating circuits, and general water service lines where maintaining flow efficiency matters. The all-bronze construction handles both hot and cold water service within its rated temperature and pressure limits.

Key Features

• Y-pattern body design reduces inline pressure drop and turbulence
• 400 psi maximum working pressure (WOG rating)
• Maximum service temperature of 391 degrees F
• Bronze body and bronze seat construction for corrosion resistance
• FNPT x FNPT end connections for standard threaded pipe assembly
• Manufactured under ISO 9001:2008 quality standards

Compatibility

Designed as an OEM-style replacement or new-installation check valve for 1-1/2 inch threaded pipe systems in residential and commercial plumbing, hydronic, and fluid-handling applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the IPC. Shut off the water supply and depressurize the line before removing any existing valve or fittings. Apply thread sealant or PTFE tape to male threads before making up the FNPT connections. Observe the directional flow arrow marked on the valve body to ensure correct orientation in the line.
