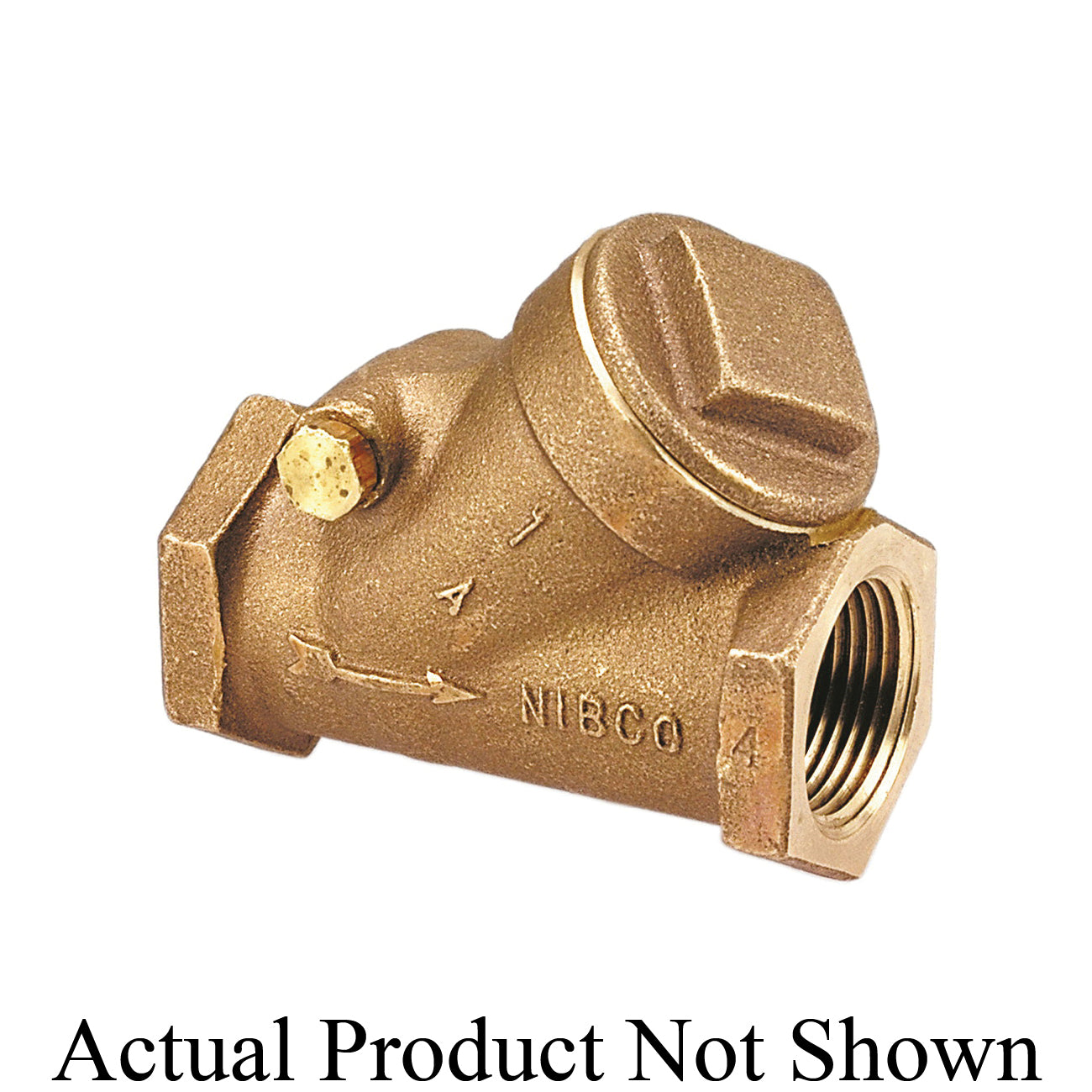

NIBCO NL8300B Y-Pattern Swing Check Valve 1-1/4 in Nominal Threaded End Style 200 lb

Product Description

The NIBCO NL8300B is a Y-pattern swing check valve designed for steam applications. It features threaded end connections for easy installation. This valve can be installed in horizontal or vertical positions with the flow moving up. NIBCO check valves are well-known for their versatility and reliability in commercial and industrial settings.

• Body material: Bronze for durability
• Pressure rating: 400 psi for reliable operation
• Low lead compliance ensures safety

Product Highlights

NIBCO NL8300B is suitable for steam media and comes with renewable bronze discs and regrindable seat to maximize longevity.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• Minimum Order Quantity: 1

Technical Specifications

• Type: Y-Pattern
• Media: Steam
• Nominal Size: 1-1/4 in
• Body Material: Bronze
• End Style: Threaded
• Pressure Rating: 400 psi
• Pressure Class: 200 lb
• Inlet to Outlet Length: 4.38 in
• Top to Inlet Center: 3.13 in
• Trim Material: Bronze
• Domestic/Import: Domestic
• Series: T-453-B
