NIBCO NL83004 T453B 1/4 THD 200# CHECK BRZ SEAT

Product Description

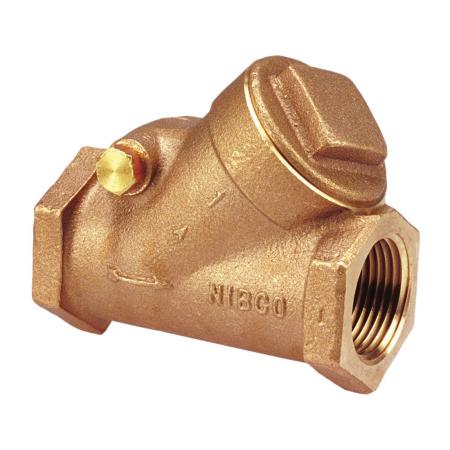

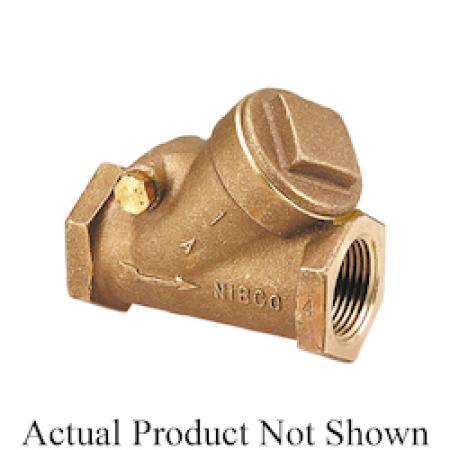

The NIBCO model NL83004 check valve features a Y-pattern design and is constructed from high-quality bronze for reliability in commercial and industrial applications. This valve's primary function is to prevent backflow in systems utilizing steam.

• Engineered for steam media applications.
• Features a threaded end style for secure installation.
• Maximum pressure rating of 400 psi for non-shock cold working conditions.

Product Highlights

This check valve operates efficiently up to a temperature of 391 degrees Fahrenheit, handling 200 psi of saturated steam. It includes a renewable bronze disc and a regrindable seat, enhancing longevity and performance.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Model: T-453-B
• Warranty: 5 years limited warranty

Technical Specifications

• Nominal Size: 1/4 inch
• Pressure Class: 200 lbs
• Pressure Rating: 400 psi
• Body Material: Bronze
• Trim Material: Bronze

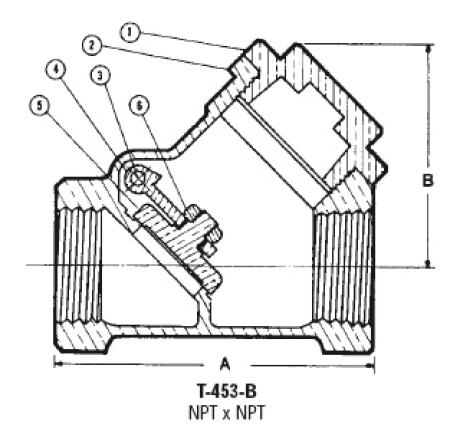

• Inlet to Outlet Length: 2-1/4 inches
• Top to Inlet Center: 1.56 inches
