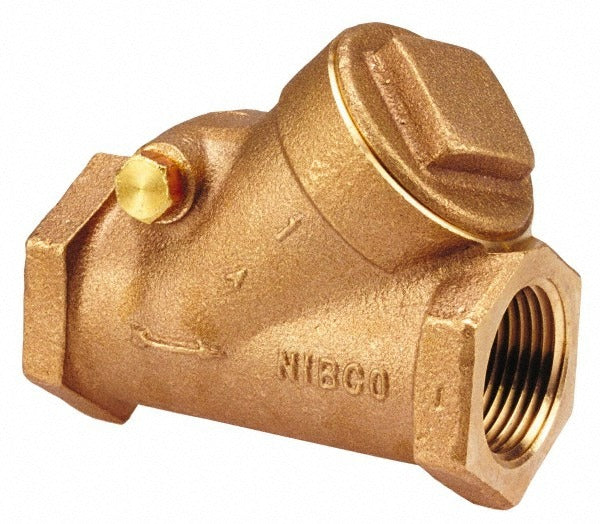

Nibco NL7K005 Bronze Y-pattern Check Valve 3/8 in Fnpt

Product Description

The NIBCO NL7K005 is a bronze Y-pattern check valve designed to permit one-directional flow and prevent backflow in piping systems. With a 3/8 inch pipe size and female NPT connections on both ends, this valve threads directly into standard plumbing or HVAC piping without additional fittings. The body is cast bronze with a PTFE seal, rated to 300 WOG (water, oil, gas) at up to 366 degrees F. Its Y-pattern body geometry delivers lower pressure drop compared to swing-check configurations, making it well suited for systems where flow efficiency matters. Licensed plumbers and pipefitters are the primary installers of this type of valve.

The NL7K005 is used in residential and light commercial plumbing, HVAC hydronic systems, and process piping applications where backflow prevention is required on smaller-diameter lines. The FNPT x FNPT end connections make installation straightforward on threaded pipe runs in water, oil, or gas service within the valve's rated pressure and temperature limits. Its compact size suits tight spaces common in mechanical rooms and equipment closets. The bronze body resists corrosion in potable water and hydronic fluid service.

Key Features

• Y-pattern body design reduces flow restriction and pressure drop across the valve
• 300 WOG pressure rating suitable for water, oil, and gas service
• FNPT x FNPT connections for direct threading onto 3/8 inch pipe
• Bronze body provides corrosion resistance in plumbing and hydronic applications
• PTFE seal material for chemical compatibility and long service life
• Maximum operating temperature of 366 degrees F

Compatibility

Designed as an OEM-style replacement or new-installation check valve for 3/8 inch threaded pipe systems in plumbing, HVAC hydronic, and light industrial applications rated within 300 psi WOG and 366 degrees F.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and the IPC. Shut off system pressure and drain the line before removing any existing valve or installing this check valve. Apply appropriate thread sealant or PTFE tape to the male pipe threads before making up connections. Verify flow-direction orientation during installation, as check valves are directional and will not function correctly if installed in reverse.
