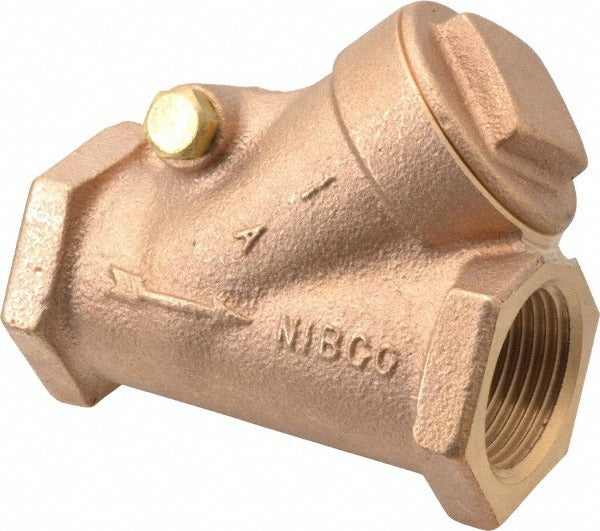

Nibco NL7500A 1 Inch Y-pattern Check Valve Fnpt 200 Psi

Product Description

The NIBCO NL7500A is a Y-pattern check valve designed for inline installation in piping systems where backflow prevention is required. Built with a bronze body and a nitrile butadiene rubber (NBR) seal, this valve handles working pressures up to 200 psi (WOG) and accepts 1-inch female NPT connections on both ends. Licensed plumbers and pipefitters install this type of valve in water distribution, HVAC hydronic loops, and light industrial fluid systems. The Y-pattern configuration provides a straighter flow path than swing-style check valves, reducing pressure drop across the fitting.

This valve is suited for residential and light commercial plumbing applications where a compact, threadable check valve is needed on a 1-inch line. Typical installations include domestic water supply piping, heating and cooling system piping, and pump discharge lines. The FNPT x FNPT end connections thread directly onto standard NPT-threaded pipe or fittings without adapters. The bronze body holds up to water, air, and many common non-corrosive fluids encountered in trade plumbing work.

Key Features

• Y-pattern body design provides a lower-restriction flow path compared to angle or lift check designs
• Bronze body construction resists corrosion in potable water and hydronic applications
• Nitrile butadiene rubber (NBR) seal material provides reliable shutoff against backflow
• 200 psi WOG working pressure rating suits most residential and light commercial lines
• FNPT x FNPT end connections thread onto standard 1-inch NPT pipe without special adapters
• Manufactured under ISO 9001:2008 quality management standards

Compatibility

Designed as an OEM-style replacement or new-installation check valve for 1-inch NPT-threaded piping systems in plumbing, hydronic HVAC, and light industrial fluid handling applications rated at or below 200 psi WOG.

Installation Notes

Installation is performed by a licensed plumber in accordance with applicable IPC or local plumbing code requirements. Shut off the water supply and relieve system pressure before installing or replacing this valve. Apply thread sealant or PTFE tape to the male NPT threads before making up the connections, and verify the arrow or flow-direction marking on the valve body is oriented correctly in the line. Do not exceed the 200 psi rated working pressure.
