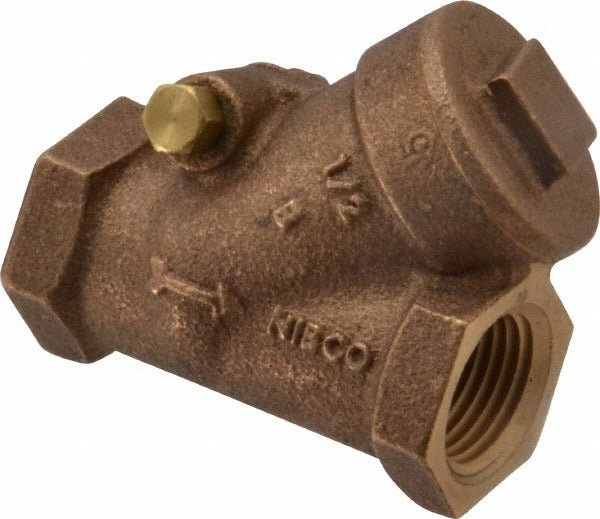

Nibco NL75006 Bronze Check Valve 1/2 Inch Y-pattern

Product Description

The NIBCO NL75006 is a bronze, Y-pattern check valve designed to allow unidirectional fluid flow and prevent backflow in plumbing, hydronic, and general piping systems. Sized for 1/2-inch pipe with female NPT connections on both ends, this valve is rated at 200 WOG (water, oil, gas) working pressure. The nitrile butadiene rubber (NBR) seal provides reliable shutoff against a wide range of media. Licensed plumbers and pipefitters install this valve in residential and light commercial systems where backflow prevention and compact inline installation are required.

The NL75006 fits 1/2-inch FNPT x FNPT piping configurations commonly found in domestic water supply lines, hydronic heating loops, compressed air distribution, and general-purpose fluid systems. The Y-pattern body design offers a more direct flow path compared to a swing-style check valve, reducing pressure drop across the valve. It is suited for both horizontal and vertical installation orientations depending on system layout and manufacturer guidelines.

Key Features

• Y-pattern body design reduces pressure drop and supports straighter flow paths
• Bronze body construction provides corrosion resistance in wet and fluid-handling environments
• NBR seal material compatible with water, oil, and gas service applications
• 200 psi WOG working pressure rating for dependable performance in pressurized systems
• FNPT x FNPT end connections for standard threaded pipe installation
• Manufactured under ISO 9001:2008 quality standards

Compatibility

Designed as an OEM-style replacement or new-installation check valve for 1/2-inch NPT threaded piping systems handling water, oil, or gas service up to 200 psi.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the applicable edition of the IPC. Shut off and depressurize the system completely before removing any existing valve or fitting. Apply thread sealant or PTFE tape to male NPT threads before making up connections. Verify the flow direction arrow on the valve body is oriented correctly relative to the direction of intended flow before finalizing the installation.
