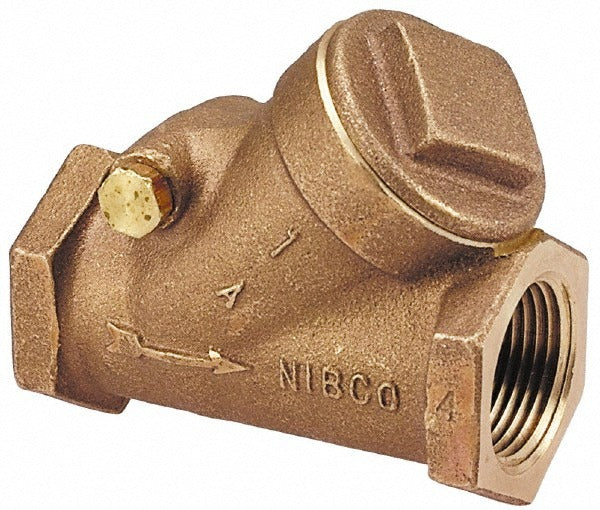

Nibco NL75005 Check Valve 3/8 Inch Y-pattern Fnpt

Product Description

The NIBCO NL75005 is a 3/8 inch Y-pattern check valve designed to allow one-directional fluid flow while preventing backflow in pressurized piping systems. It features female NPT (FNPT) connections on both ends and is rated at 200 WOG (Water, Oil, Gas), making it suitable for a range of general-purpose service lines. The bronze body provides corrosion resistance in wet environments, and the nitrile butadiene rubber (NBR) seal ensures a reliable shutoff against common hydraulic fluids, water, and light petroleum products. Licensed plumbers and pipefitters are the primary installers of this valve type in commercial and residential service piping.

This valve is suited for residential and light commercial plumbing, HVAC hydronic systems, and industrial service lines where backflow prevention is required on smaller-diameter piping. The Y-pattern configuration reduces flow restriction compared to swing-type check valves, making it appropriate for applications where pressure drop is a concern. FNPT x FNPT connections are compatible with standard threaded pipe fittings in 3/8 inch pipe size, a common dimension in branch lines, appliance supply runs, and instrumentation piping.

Key Features

• Y-pattern design reduces flow restriction and pressure drop compared to inline swing-check configurations
• 200 WOG pressure rating suitable for water, oil, and gas service lines
• Bronze body construction resists corrosion in wet and humid environments
• Nitrile butadiene rubber (NBR) seal provides reliable shutoff with water, light oils, and hydraulic fluids
• FNPT x FNPT end connections for straightforward threaded installation
• Compact 3/8 inch pipe size fits branch lines and appliance supply applications

Compatibility

Designed as an OEM-style replacement or new-installation check valve for 3/8 inch threaded pipe systems using standard NPT fittings in plumbing, HVAC hydronic, and general-purpose fluid service applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable IPC or local plumbing code requirements. Shut off the water or fluid supply and relieve system pressure completely before removing or installing this valve. Use appropriate thread sealant or PTFE tape on all NPT connections and tighten to hand-snug before applying wrench torque — avoid over-tightening bronze-bodied fittings. Verify flow-direction arrow on the valve body is aligned with the intended direction of flow before finalizing the installation.
