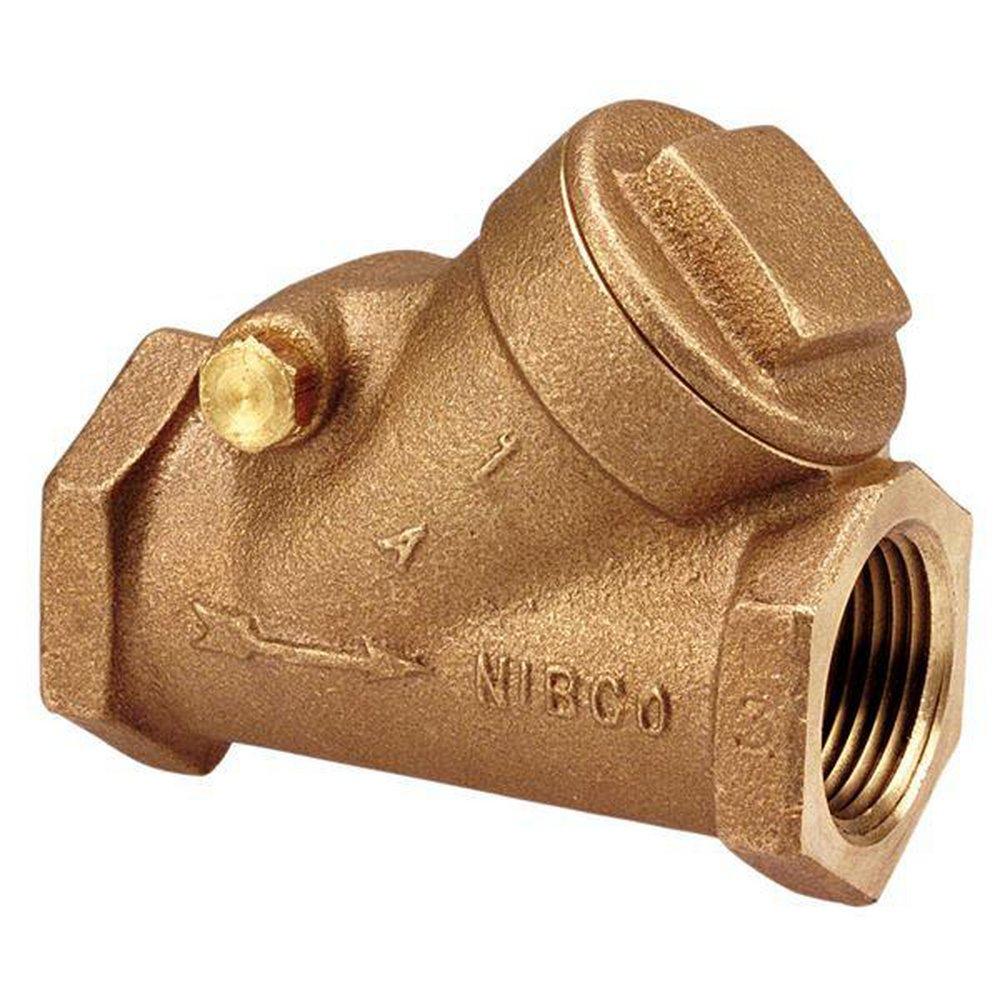

NIBCO NL7400A T-413-Y 1 Inch Bronze NPT Check Valve Horizontal Swing PTFE Disc

Product Description

The NIBCO T-413-Y Horizontal Swing Check Valve ensures efficient backflow prevention in industrial pipelines. Featuring a robust bronze body and a precision-engineered PTFE disc, this 1-inch FNPT valve is designed for enduring performance under high pressure conditions.

• Engineered for durability with a solid bronze body and a stainless steel clapper arm shaft.
• NSF/ANSI 372 certified, adhering to strict safety and quality standards.
• Designed for easy installation with threaded end connections and a screw-in bonnet.

Product Highlights

This valve is optimal for steam, water, oil, and gas services, offering both reliability and ease of maintenance. Its design includes renewable seats and disc, enabling regrinding, which prolongs service life.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NL7400A
• Material: Bronze
• Type: Y-Pattern Swing Check Valve
• Pressure Rating: 200 psi non-shock cold working pressure
• Connection Type: FNPT
• Compliance: NSF/ANSI 372, ANSI/AWWA C508

Technical Specifications

• Size: 1 inch
• Pressure Class: 125 lbs
• Steam Pressure: up to 125 psi/8.6 bar at 353 degrees Fahrenheit
• Application: Industrial, Mechanical
• Standards: MSS SP-80, MSS SP-139
