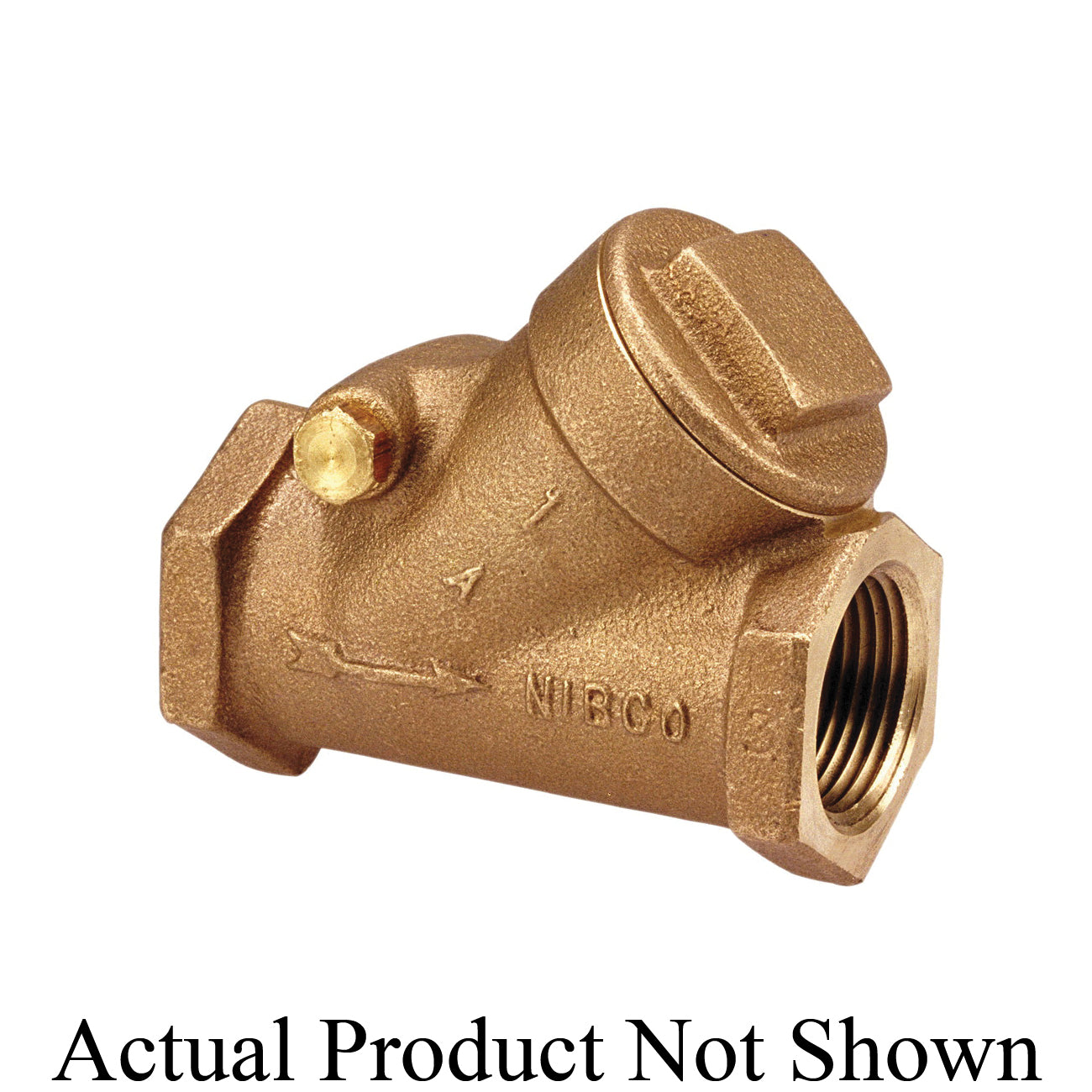

NIBCO NL74004 Y-Pattern Swing Check Valve 1/4 In Nominal NPT 125 lb

Product Description

The NIBCO check valve, part number NL74004, features a screw-in bonnet design. This allows easy access for maintenance and part replacement. It can be used in both horizontal and vertical positions, with flow moving upwards. Refer to NIBCO technical data sheets and chemical resistance guides for detailed installation guidance. The check valve is an economical option for various commercial and industrial applications. It includes a five-year limited warranty from NIBCO.

• Easy access for maintenance
• Suitable for horizontal and vertical installation
• Suitable for a range of commercial and industrial applications

Product Highlights

The swing check valve prevents backflow by automatically closing when the fluid flow reverses, ensuring reliable operation.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer: NIBCO Inc.

Technical Specifications

• Body Material: Bronze
• Nominal Size: 1/4 in
• End Style: NPT
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Series: T-413-Y
• Softgoods Material: PTFE
• Low Lead Compliance: No
