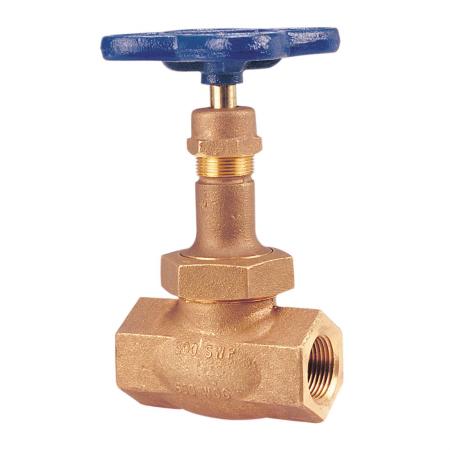

NIBCO NL3ZN0A T276AP 1 ThD 300# Globe Full Plug

Product Description

The NIBCO NL3ZN0A T276AP 1 ThD 300# Globe Full Plug is designed for commercial and industrial applications. This globe valve has a handwheel actuator and is made from bronze, with silicon bronze trim. It's suitable for water, HVAC, steam, compressed air, gas, and other general utility services.

• Handles up to 600 psi of non-shock cold working pressure
• Replaceable stainless steel seat ring
• Dezincification resistant for longer life

Product Highlights

This NIBCO globe valve is perfect for applications requiring high pressure and temperature resistance. It features a union bonnet and a renewable stainless steel full plug disc for easy maintenance.

Product Information

Standard Information

• Actuator Type: Handwheel
• Body Material: Bronze

Technical Specifications

• Pressure Class: 300 lb
• Pressure Rating: 600 psi
• Nominal Size: 1 in
• End Style: NPT
• Inlet to Outlet Length: 4 in
• Top to Inlet Center: 7 in
• Media: Water
• Trim Material: Silicon Bronze
• Softgoods Material: Aramid Fiber
• Series: T-276-AP
• Domestic/Import: Domestic
