NIBCO NL3ZN08 T276AP 3/4 THD 300# GLOBE FULL PLUG

Product Description

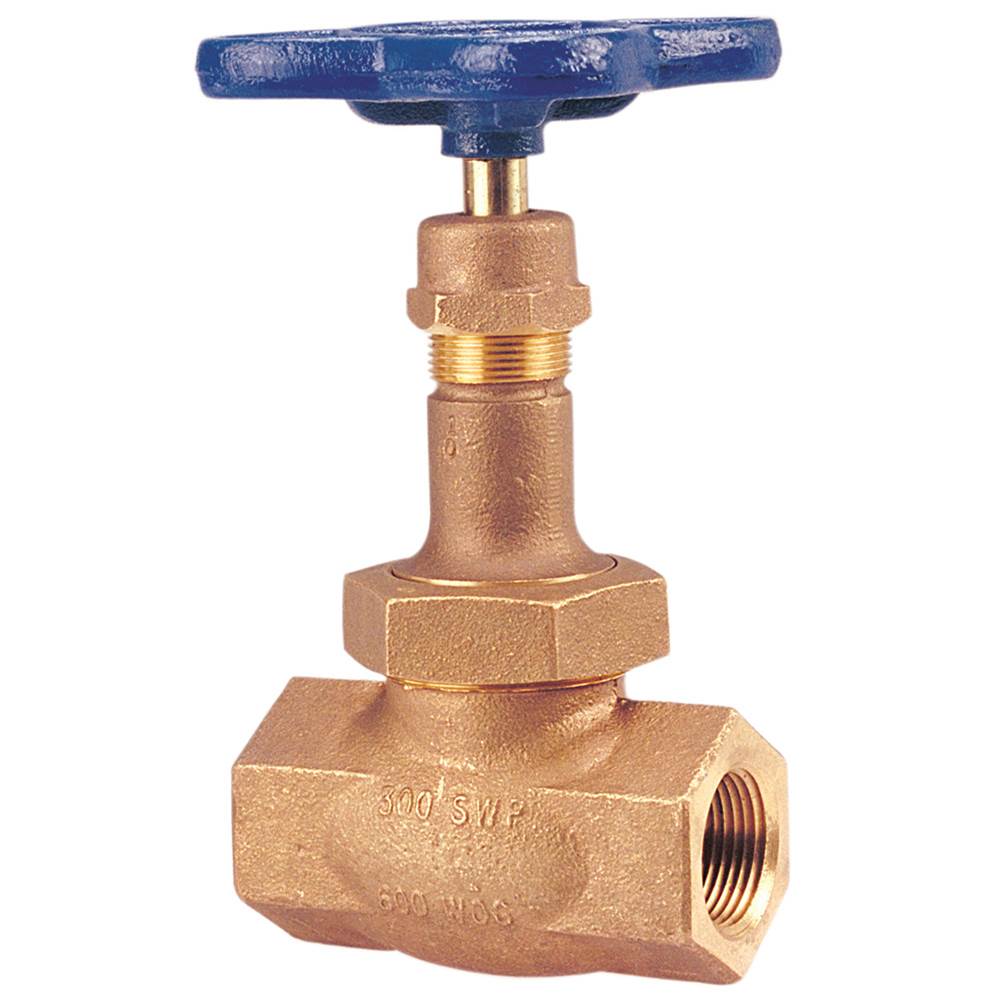

The NIBCO NL3ZN08 is a globe valve designed for various industrial applications. This valve has a three-quarter inch nominal size and features a female NPT end style. It can handle a pressure rating of six hundred psi with a pressure class of three hundred pounds. The valve is primarily used with water media and includes a handwheel actuator for easy operation.

• Replaceable stainless steel seat ring
• Union bonnet design for secure assembly
• Renewable stainless steel full plug disc

Product Highlights

This globe valve is ideal for commercial and mechanical environments that require reliable fluid control.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• UPC: 039923630209

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 3.38 inches
• Media: Water
• Nominal Size: 3/4 inches
• Pressure Class: 300 lb
• Pressure Rating: 600 psi
• Series: T-276-AP
• Softgoods Material: Aramid Fiber
• Top to Inlet Center: 5-3/4 inches
• Trim Material: Silicon Bronze
