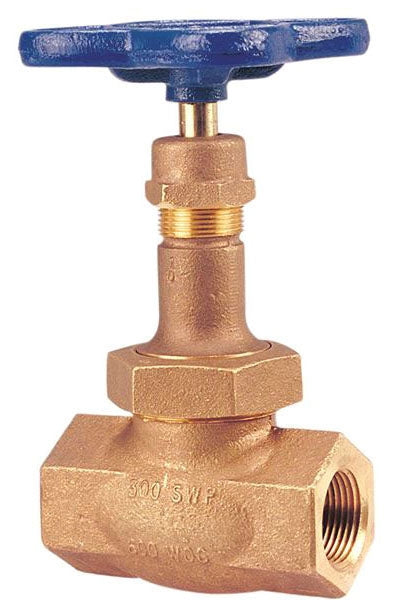

NIBCO NL3X00C Globe Valve Handwheel Multi-Turn FPT 1-1/2 Inch T-275-Y

Product Description

The NIBCO globe valve model NL3X00C is designed for robust industrial and commercial applications, offering reliable control over fluids such as water, steam, and air. Crafted from dezincification resistant bronze for enhanced durability, this valve is suitable for both hot and cold systems.

• Multi-turn handwheel operation provides precise control.
• Integrated PTFE seat ensures tight sealing and stability under various temperatures.
• ASTM certifications highlight the globe valve's suitability for stringent applications.

Product Highlights

This globe valve features a 1-1/2 inch female threaded connection on both sides, making installation straightforward in existing pipeline setups. It operates efficiently under a pressure rating of 300 PSI SWP and 600 PSI CWP, with a temperature tolerance up to 421 degrees Fahrenheit. The robust handwheel mechanism ensures long-term reliability in regulating flow.

Product Information

Standard Information

• Manufacturer: NIBCO
• UPC: 039923629623
• UNSPSC: 40141611

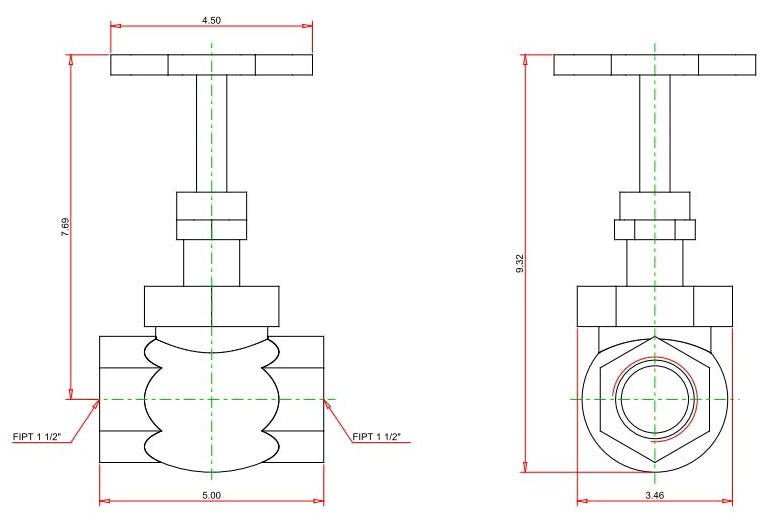

Technical Specifications

• Nominal Size: 1-1/2 inches
• Pressure Rating: 300 PSI SWP, 600 PSI CWP
• Temperature Rating: 421 Deg F
• Material: ASTM B61 Bronze, PTFE disc
• Connection Type: FPT x FPT
• End to End Distance: 5 inches
