Nibco NL3W00D globe valve 2 inches replacement T-275-B

Product Description

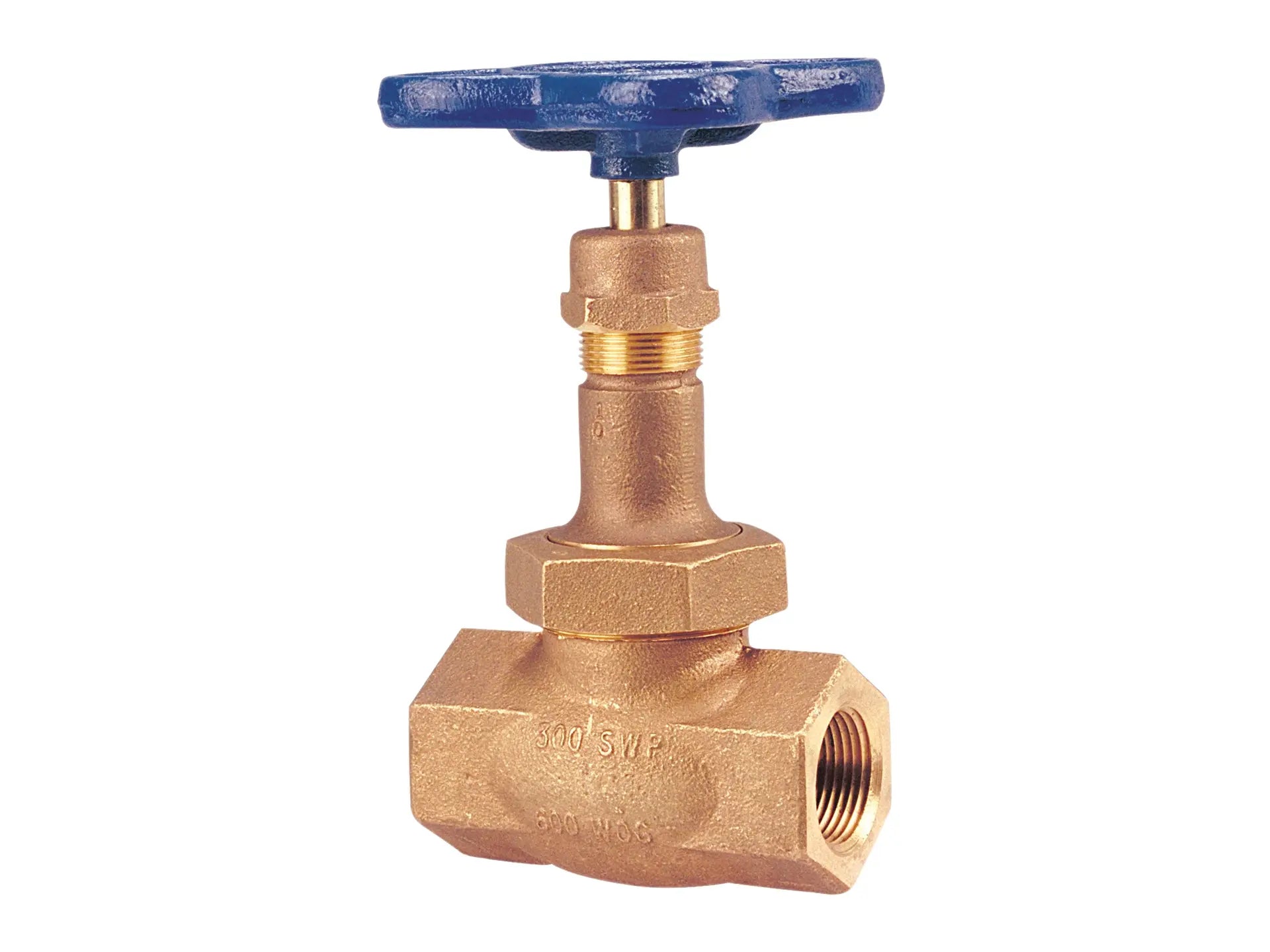

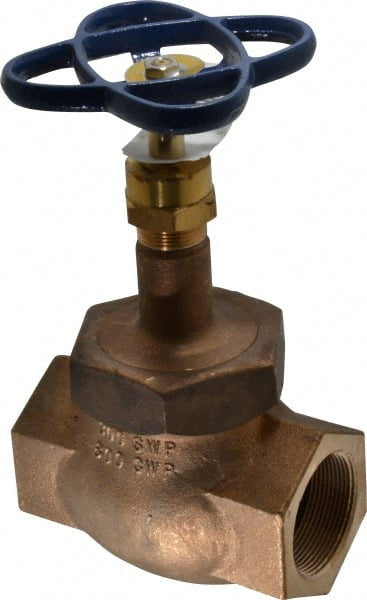

The NIBCO NL3W00D bronze globe valve features a union bonnet with integral seat and renewable semi-plug or standard disc. Equipped with female threads ends for ease of installation, this 2" valve is ideal for higher pressure steam and allows for closer throttling of flow. It is dezincification resistant.

• Features a union bonnet with integral seat
• Renewable bronze semi-plug disc
• Female NPT thread (FIPT)

Product Highlights

The NIBCO globe valve is a versatile and economical valve option for commercial, mechanical, and industrial applications. It is rated to 300 psi/20.7 bar saturated steam to 421°F/216°C.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL3W00D
• Country of Origin: US

Technical Specifications

• UPC Code: 039923629050
• Type: Globe Valve
• Valve Size: 2
• Connection Type: Female NPT Thread (FIPT)
• Material: Bronze
• Valve Operator: Standard Handwheel
• Description: T275B 2 THD 300# GLOBE BRZ SEAT
• eClass Classification: Bronze Globe Valves
• Turns/Operation: Multi-Turn
• Valve Type: Integral Globe Valve
• End Connection: Threaded
• Body Material: Bronze
• Handle Type: Handwheel
• Bonnet Style: Union
• Pressure Class: 300
• Maximum Working Pressure: 300psi, 600psi, 20.7bar, 41.4bar
• Manufacturer: NIBCO
• Part Number: NL3W00D
• Model: T-275-B
• Connection: 2" Female NPT Thread (FIPT)
• Material Specification: ASTM A-53
• Cold Working Pressure: 600 psi
• Maximum Temperature: 421 300 to 421.0
• Seat Style: Integral
• Seat Material: Bronze
• Disc Style: Renewable Semi-Plug
• Potable Water Code: Not LL Compliant - Not Intended for Potable Water
