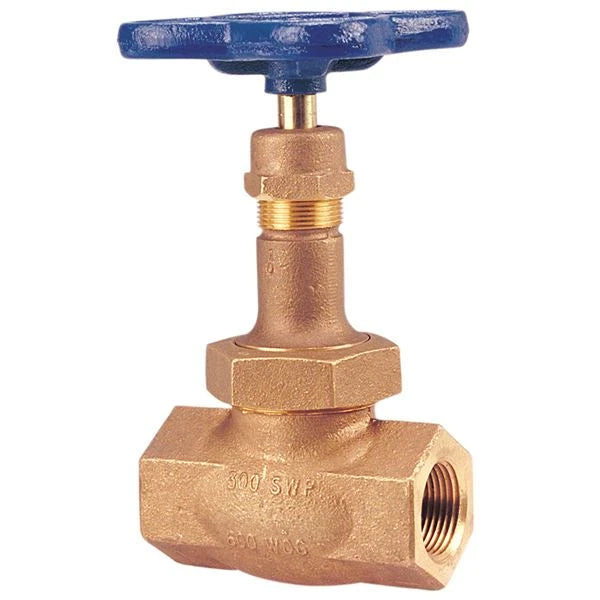

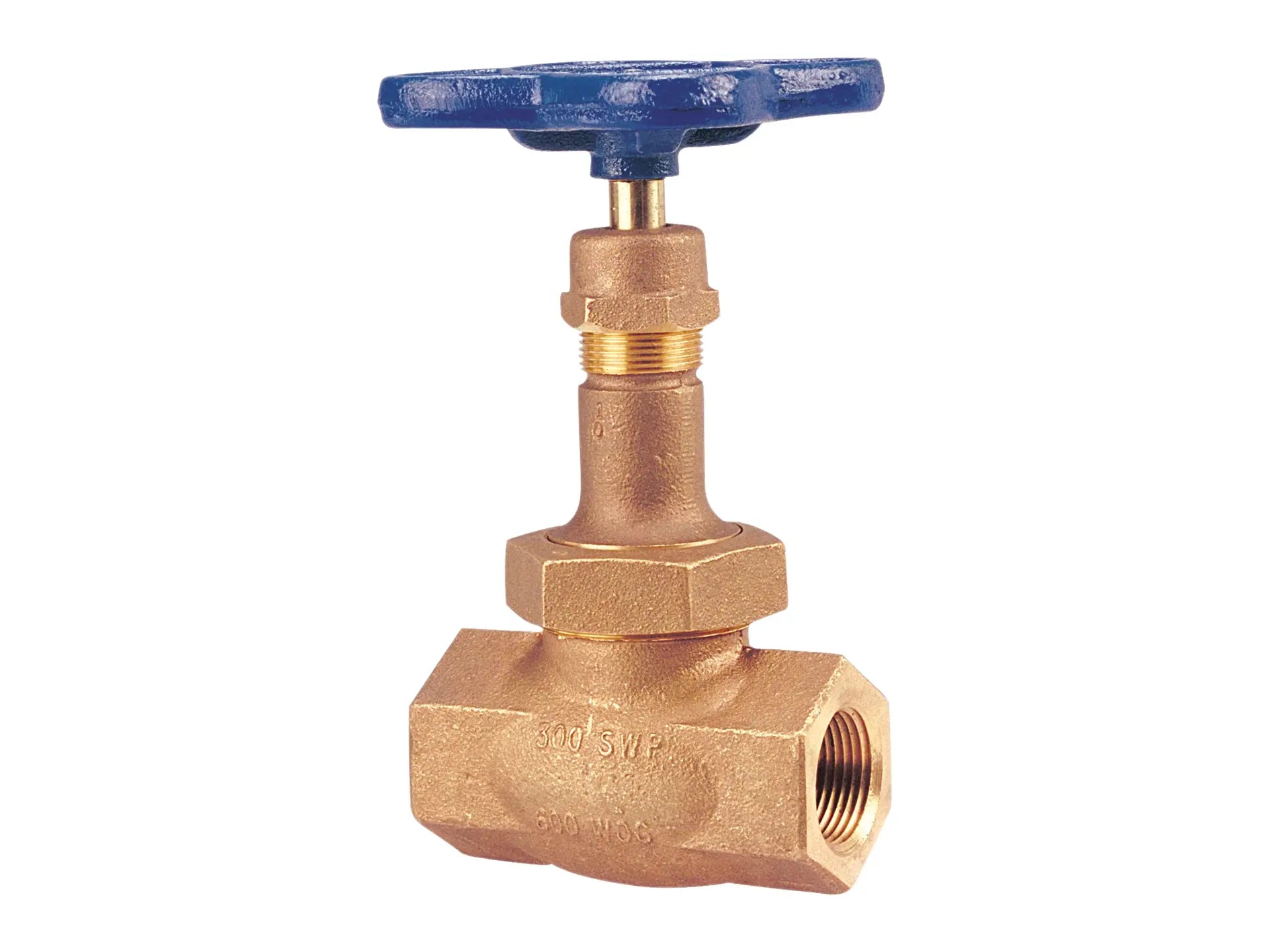

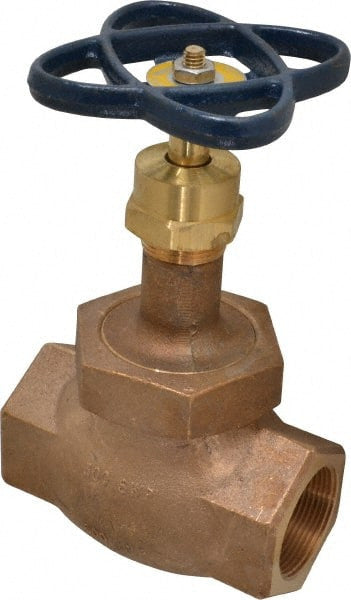

Nibco NL3W00C T275-B Globe Valve 1 1/2 Inch

Product Description

The NIBCO NL3W00C bronze globe valve features a union bonnet with integral seat and renewable semi-plug or standard disc. Equipped with female threads ends for ease of installation. Ideal for higher pressure steam and the semi-plug disc allows for closer throttling of flow. Not intended for potable water use.

• 300 psi/20.7 bar saturated steam to 421°F/216°C
• 600 psi/41.4 bar non-shock cold working pressure
• Integral seat

Product Highlights

The NIBCO bronze globe valve is for commercial, mechanical and industrial applications. It has threaded end connections and conforms to MSS SP-80.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL3W00C
• Country of Origin: US

Technical Specifications

• Valve Size: 1 1/2
• Connection Type: Female NPT Thread (FIPT)
• Material: Bronze
• Valve Operator: Standard Handwheel
• Turns/Operation: Multi-Turn
• Weight: 8.291 lb
• Manufacturer: NIBCO
• Part Number: NL3W00C
• Model: T-275-B
• Valve Type: Globe Valve
• Connection: 1-1/2" Female NPT Thread (FIPT)
• Material Specification: ASTM A-53
• Cold Working Pressure: 600 psi
• Maximum Temperature: 421°F
• Bonnet Style: Union
• Seat Style: Integral
• Seat Material: Bronze
• Disc Style: Renewable Semi-Plug
• Handle Style: Standard Handwheel
• Potable Water Code: Not LL Compliant - Not Intended for Potable Water
• Length: 9.47"
• Width: 5"
• Height: 5"
• Pressure Class: 300
• Maximum Working Pressure: 300psi, 600psi, 20.7bar, 41.4bar
• Item: Globe Valve
• Body Material: Bronze
