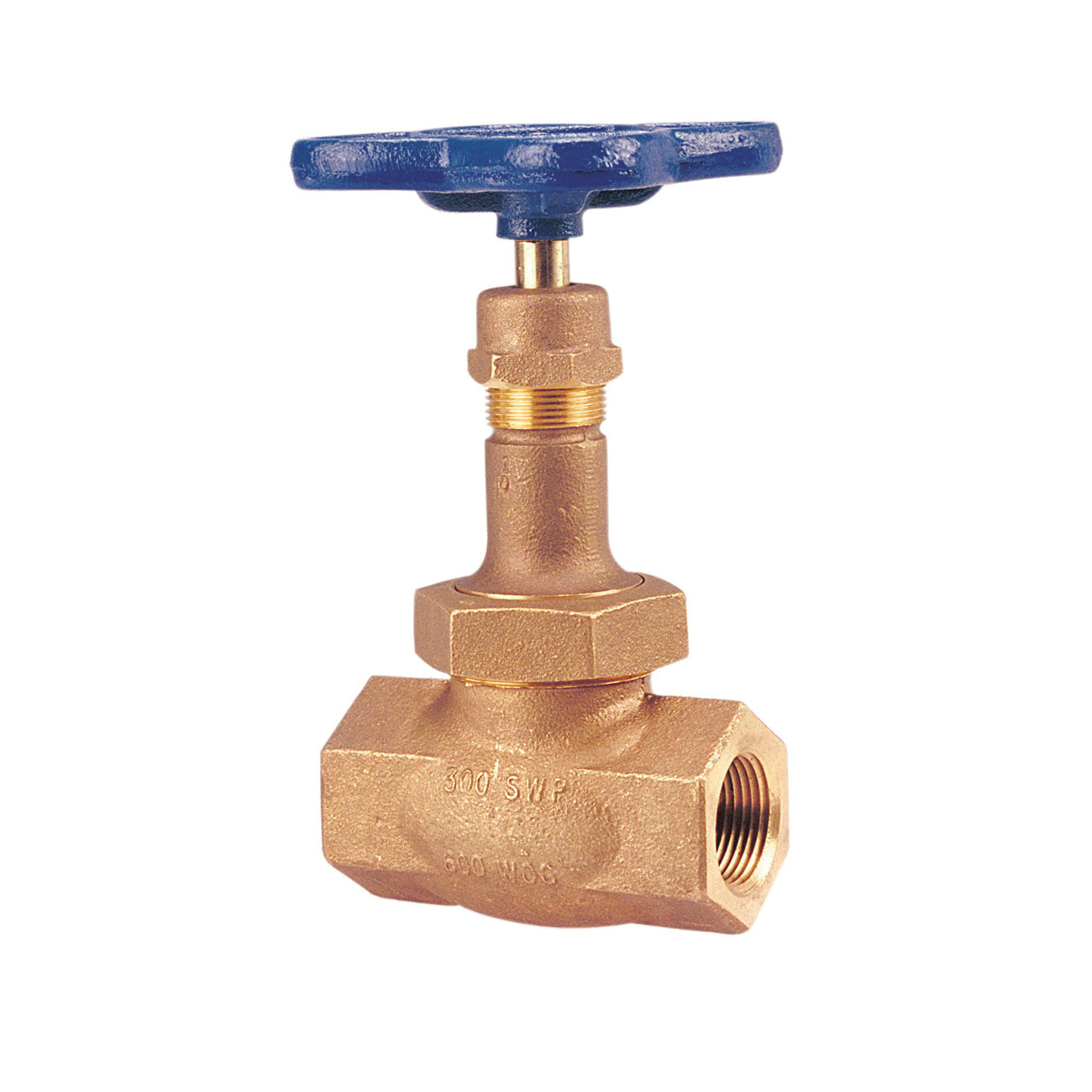

NIBCO NL3W006 Globe Valve 1/2 in Nominal FNPT End Style 300 lb

Product Description

The NIBCO NL3W006 Globe Valve is a robust option for various applications. It features a union bonnet and integral seat, allowing for easy installation and maintenance. Its female thread ends support a secure connection. This valve is suitable for higher pressure steam systems, with a semi-plug disc designed for precise flow control.

• High pressure capability for steam and water applications.
• Integral seat and union bonnet for durability.
• Renewable semi-plug design for effective flow throttling.

Product Highlights

Choose the NIBCO Globe Valve for reliability in commercial and industrial settings. It is backed by a five-year limited warranty, ensuring peace of mind.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• UPC: 039923629005

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 2.69 inches
• Media: Water
• Nominal Size: 1/2 inches
• Pressure Class: 300 lb
• Pressure Rating: 600 psi
• Series: T-275-B
• Softgoods Material: Aramid Fiber
• Top to Inlet Center: 4.88 inches
• Trim Material: Silicon Bronze
