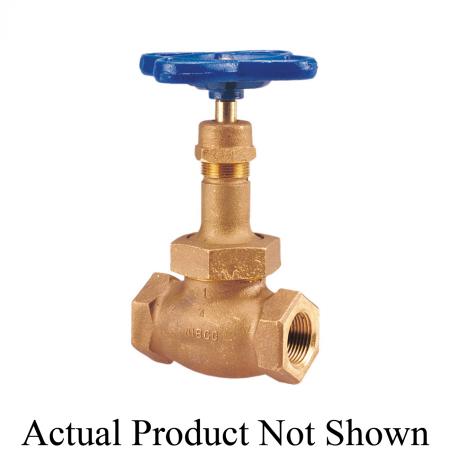

NIBCO NL3MN08 T256AP 3/4 INCH GLOBE VALVE 200 LB BRONZE

Product Description

The NIBCO NL3MN08 globe valve is designed for durability and reliability in a variety of commercial and industrial applications. This 3/4 inch bronze valve is well-suited for HVAC systems, steam transfer, compressed air, and water services.

• Pressure rating up to 400 psi for non-shock cold working conditions.
• Union bonnet and replaceable seat for easy maintenance.
• Dezincification resistant, ensuring longevity in harsh environments.

Product Highlights

The valve offers a renewable stainless steel full plug disc and is manufactured under the highest standards, meeting MSS SP-80 specifications. It features an aramid fiber build that enhances its performance in both cold and hot temperatures.

Product Information

Standard Information

• Series: T-256-AP
• Media: Water
• Domestic/Import: Domestic

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• Trim Material: Silicon Bronze
• Nominal Size: 3/4 inch
• Pressure Class: 200 lb
• Pressure Rating: 400 psi
• Softgoods Material: Aramid Fiber

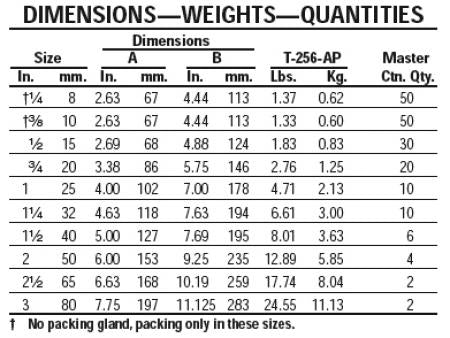

• Top to Inlet Center: 5-3/4 inches
• Inlet to Outlet Length: 3.38 inches
